High‑Power Relay

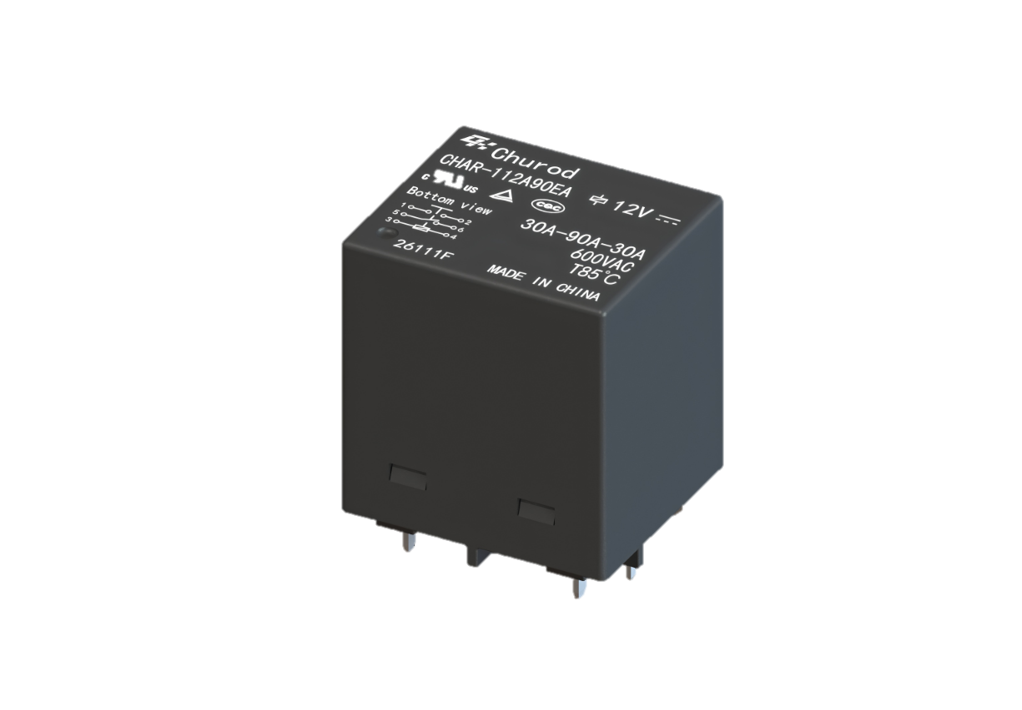

CHAR-75EA&90EA&110EA
1 Form A Double-break Main Contact + 1 Form A Auxiliary Contact
Large contact gap ≥4.0 mm
Low temperature rise, high short-circuit withstand capability
High dielectric strength of 5000VAC between coil and contacts
Overall dimensions: (38×33×43) mm
Certification：
Application：
Photovoltaic Inverters, Energy Storage PCS, Industrial Control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 Form A + 1 Form A Auxiliary Contact | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | PCB Soldering | Package Type: | Flux Resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 1.92W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 600VAC |
Rated Load Current: | 75A、90A、110A | Dielectric Withstand Voltage (Between Coil and Contacts): | 5000VAC 1min | Operate Time (ms): | ≤35 | Release Time (ms): | ≤10 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 1000000 | Electrical Life (cycles): | 30000(See datasheet for more details） | Weight (g): | ≈98 | Volume (mm³): | 38×33×43 | Applications: | Photovoltaic Inverters, Energy Storage PCS, Industrial Control and other fields. |
