High‑Power Relay

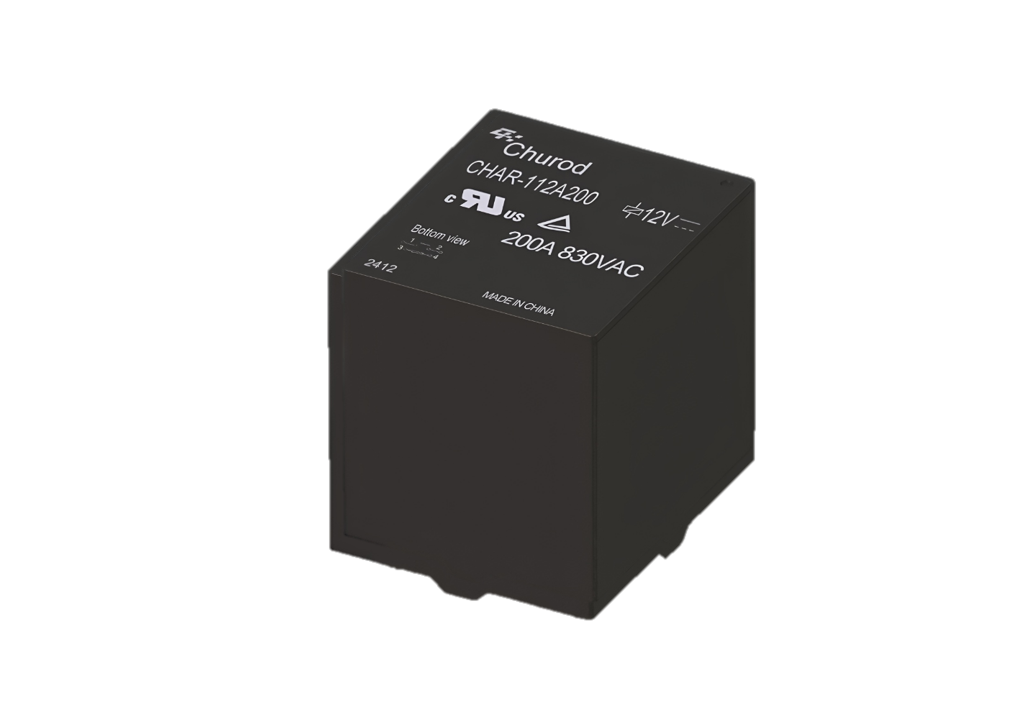

CHAR-A200&A150H
1 Form A Double-break Contact, contact gap ≥4.0 mm
Ideal for photovoltaic inverter and energy storage PCS applications
150A & 200A current carrying capacity
Low temperature rise, high short-circuit withstand capability
Overall dimensions: (47.7×40.1×51.8) mm
Certification：
Application：
Photovoltaic Inverters, Energy Storage PCS, Industrial Control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | PCB Soldering | Package Type: | Flux Resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 3.2W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 830VAC |
Rated Load Current: | 150A、200A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤35 | Release Time (ms): | ≤10 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 1000000 | Electrical Life (cycles): | 30000(See datasheet for more details） | Weight (g): | ≈194 | Volume (mm³): | 47.7×40.1×51.8 | Applications: | Photovoltaic Inverters, Energy Storage PCS, Industrial Control and other fields. |
