High‑Power Relay

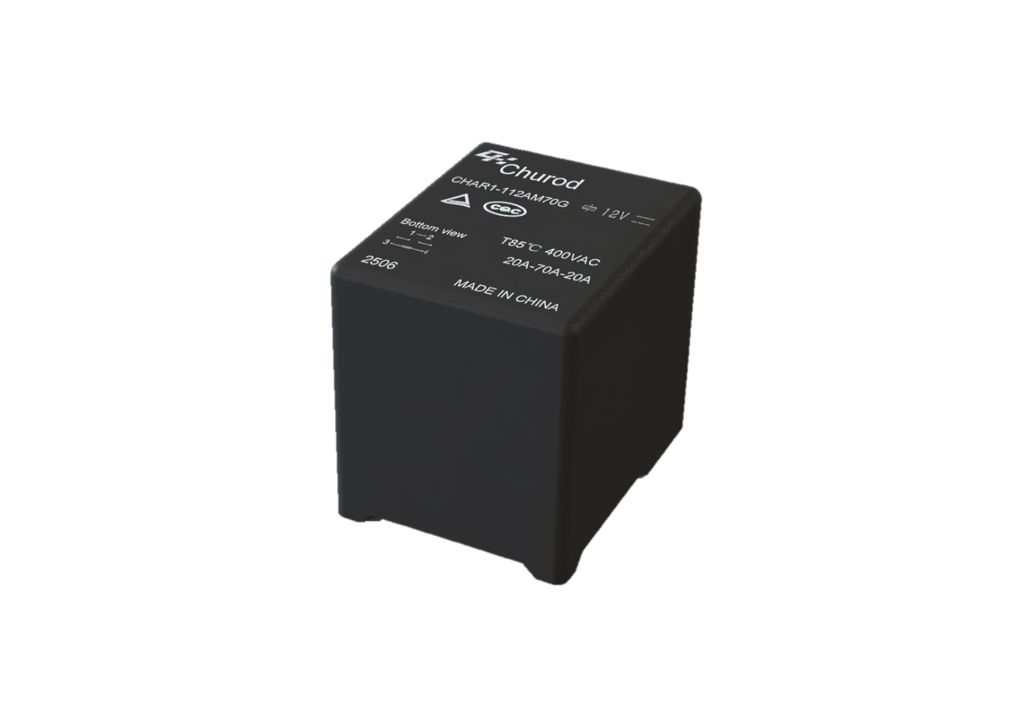

CHAR1-50G&70G
1 Form A Double-break Contact, contact gap ≥3.0 mm
Low temperature rise, high short-circuit withstand capability
Overall dimensions: (38×29.8×33.6) mm
Certification：
Application：
Photovoltaic Inverters, Energy Storage PCS, Industrial Control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | PCB Soldering | Package Type: | Flux Resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 2W | Coil Characteristic: | Monostable |
Contact Material:： | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage:： | 400VAC、690VAC、800VAC |
Rated Load Current: | 50A、70A | Dielectric Withstand Voltage (Between Coil and Contacts): | 3000VAC 1min | Operate Time (ms): | ≤30 | Release Time (ms): | ≤15 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 200000 | Electrical Life (cycles): | 3000(See datasheet for more details） | Weight (g):： | ≈65 | Volume (mm³): | 38×29.8×33.6 | Applications： | Photovoltaic Inverters, Energy Storage PCS, Industrial Control and other fields. |
