High‑Power Relay

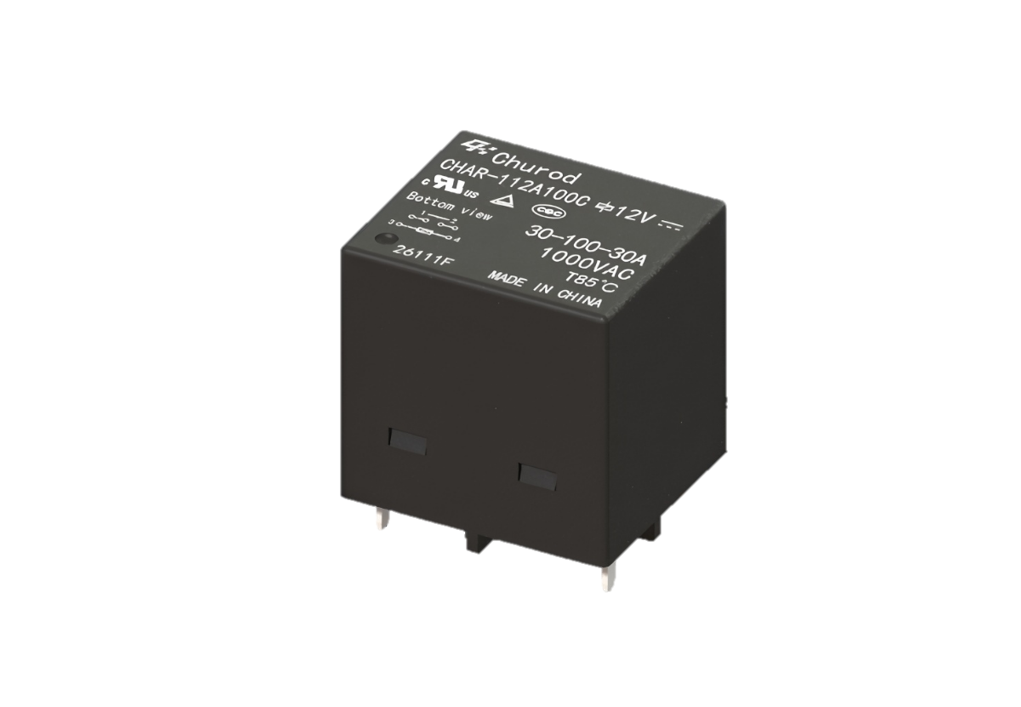

CHAR-A100C
1 NO double break
Large contact gap ≥4.0mm
Low temperature rise, high short-circuit resistance
High dielectric withstand voltage of 5000VAC between coil and contacts
Dimensions: (38×33×39.5) mm
Certification：
Application：
PV inverters, energy storage PCS, US-standard AC charging piles, industrial control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | PCB Soldering | Package Type: | Flux Resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 1.92W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 1000VAC |
Rated Load Current: | 100A | Dielectric Withstand Voltage (Between Coil and Contacts): | 5000VAC 1min | Operate Time (ms): | ≤35 | Release Time (ms): | ≤15 | Operating Ambient Temperature： | -40℃~85℃ |
| Mechanical Life (cycles)： | 1000000 | Electrical Life (cycles)： | 30000(See datasheet for more details） | Weight (g): | ≈89.5 | Volume (mm³): | 38×33×39.5 | Applications: | PV inverters, energy storage PCS, US-standard AC charging piles, industrial controland other fields. |
