Low‑Power Relay

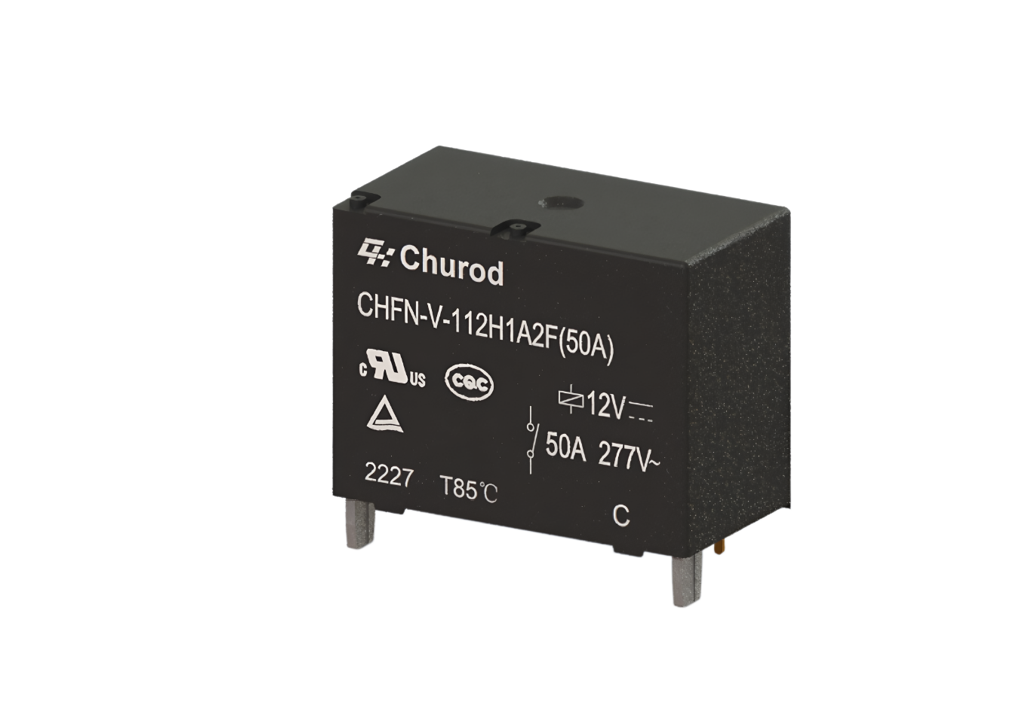

CHFN-H1
1 Normally Open, Small Size, High Capacity
4,500 VAC Dielectric Strength Between Coil and Contacts
Contact Gap > 2.0 mm
Dimensions: (30.1 × 15.7 × 23.3) mm
Certification：
Application：
Charging piles, Solar inverters, Energy storage PCS, AC/DC power control
Main Parameters
Coil Voltage Type： | DC | Coil Operating Voltage (V) | 12、24 | Contact Form： | 1NO | Number of Contacts： | Single contact | Terminal Type： | PCB Mount |
Mounting Type： | — | Package Type： | Flux Resistant | Terminal Structure Type： | PCB Mount | Coil Power： | 1.6W | Coil Characteristics： | Monostable |
Contact Material： | Silver Alloy | Insulation Class： | F | Coil Parallel Component： | - | Packaging Type： | Blister pack | Rated Load Voltage： | 250VAC |
Rated Load Current： | 43A50A | Dielectric Strength (Between Coil and Contacts)： | 4500VAC 1min | Operate Time (ms)： | ≤20 | Release Time (ms)： | ≤10 | Operating Ambient Temperature： | -40℃~85℃ |
| Mechanical Life (cycles)： | 300000 | Electrical Life (cycles)： | 30000(For more details, please refer to the datasheet) | Weight (g)： | ≈23 | Volume (mm³)： | 30.1×15.7×23.3 | Applications： | Solar energy, industrial power supplies, energy storage PCS and other fields. |
