Low‑Power Relay

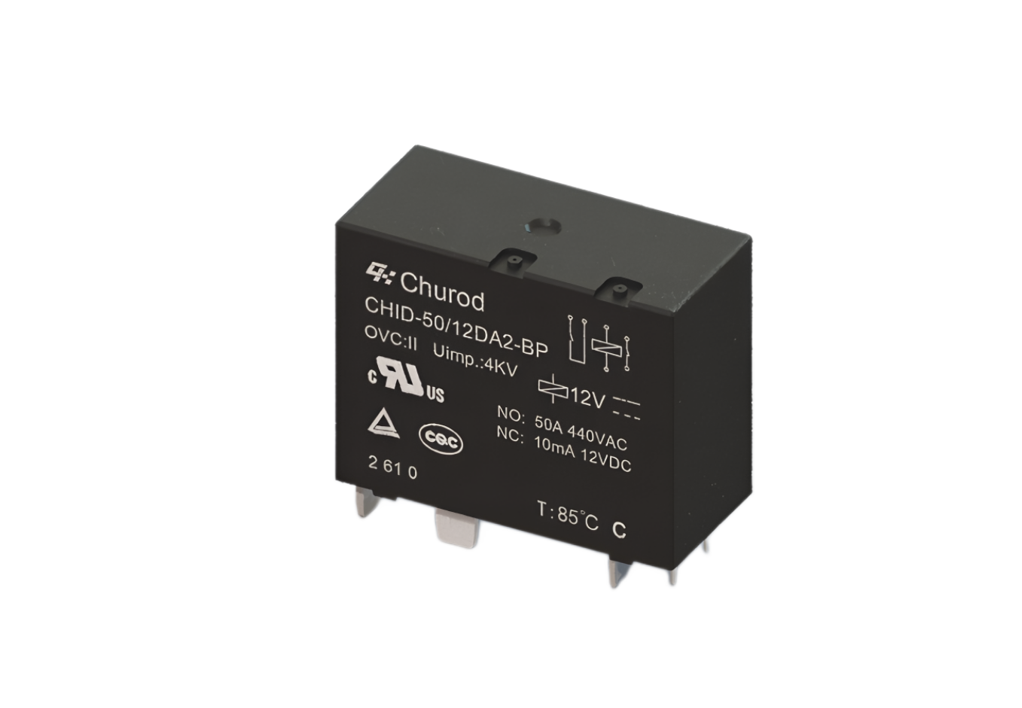

CHID
1 Normally Open + 1 Normally Closed (Auxiliary Contact)
Compact size, high capacity; high short-circuit resistance
Main contact gap: ≥2.25 mm
Dimensions: (35 × 16 × 28) mm
Certification：
Application：
Charging piles, industrial power supplies, energy storage PCS
Main Parameters
Coil Voltage Type： | DC | Coil Operating Voltage (V)： | 12、24 | Contact Form： | 1NO + 1NC (Auxiliary Contacts) | Number of Contacts： | Single Contact | Terminal Type： | PCB Mount |
Mounting Type： | — | Package Type： | Flux Resistant | Terminal Structure： | PCB Mount | Coil Power： | 2.1W | Coil Characteristic： | Monostable |
Contact Material： | AgSnO2 | Insulation Class： | F | Coil Parallel Component： | - | Packaging Type： | Blister Pack | Rated Load Voltage： | 250VAC |
Rated Load Current： | 50A | Dielectric Withstand Voltage (Coil to Contacts)： | 4000VAC 1min | Operate Time (ms)： | ≤30 | Release Time (ms)： | ≤10 | Operating Ambient Temperature： | -40℃~85℃ |
| Mechanical Life (cycles) | 300000 | Electrical Life (cycles)： | 50000(For more details, please refer to the datasheet) | Weight (g)： | ≈35 | Volume (mm³)： | 35×16×28 | Applications： | Charging piles, industrial power supplies, energy storage PCS and other fields. |
