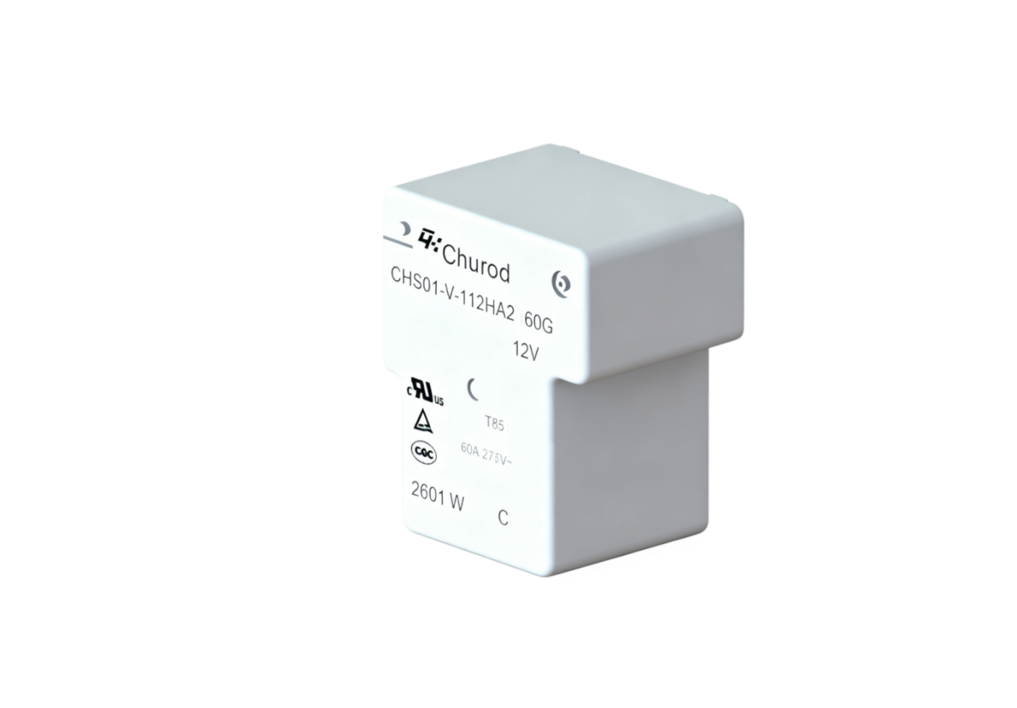

Low‑Power Relay
CHS-H
Universal model for photovoltaic inverters and energy storage PCS applications
Compact size, low profile, high load capacity up to 60A
Optional version with 4,000VAC high dielectric withstand voltage between coil and contacts
2.25mm large contact gap, Class F insulation system
Outline dimension: (32.1×27.05×20.2) mm
Certification：
Application：
Photovoltaics, energy storage PCS, charging & discharging piles
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO, 1 CO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | — | Package Type: | flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 2.25W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 400VAC/277VAC/30VDC |
Rated Load Current: | 35A、43A、50A、60A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤15 | Release Time (ms): | ≤15 | Operating Ambient Temperature： | -40℃~85℃ |
| Mechanical Life (cycles)： | 10000000 | Electrical Life (cycles)： | 30000(See datasheet for more details） | Weight (g): | ≈27g(CHS01), ≈32g(CHS02) | Volume (mm³): | 32.1×27.05×20.2 | Application： | Photovoltaics, Energy Storage PCS, Charging & Discharging Piles and other fields. |
