Low‑Power Relay

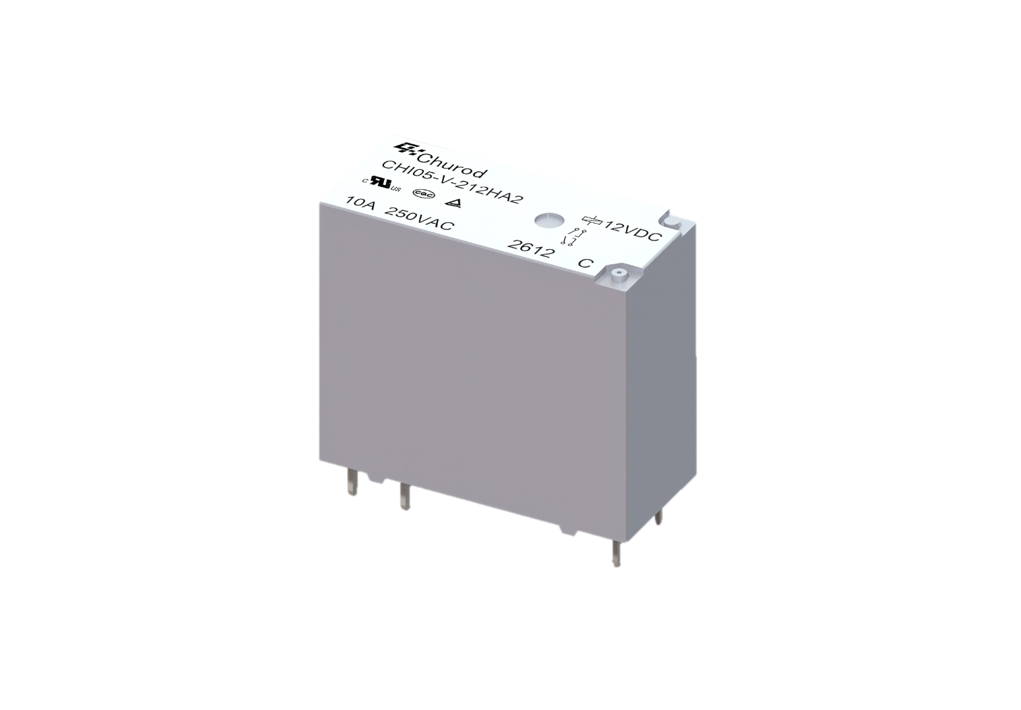

CHI05
2 Normally Open, 2 Change-over
High dielectric withstand voltage of 5,000VAC between coil and contacts
Contact gap: Type H: ≥1.5mm; Type H1: ≥2.0mm
Outline dimension: (28.8×12.6×25.6) mm
Certification：
Application：
Household appliances, industrial control, photovoltaic inverters
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 5、12、24 | Contact Form: | 2 NO, 2 CO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | — | Package Type: | Sealed Type, Flux Resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.8W、1.4W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 125VAC/250VAC/30VDC |
Rated Load Current: | 10A | Dielectric Withstand Voltage (Between Coil and Contacts): | 5000VAC 1min | Operate Time (ms): | ≤15 | Release Time (ms): | ≤10 | Operating Ambient Temperature： | -40℃~85℃ |
| Mechanical Life (cycles)： | 3000000 | Electrical Life (cycles)： | 30000(NO: 10A 250VA; NC: 10A 250VAC） | Weight (g): | ≈17 | Volume (mm³): | 28.8×12.6×25.6 | Applications： | Household appliances, industrial power supplies, industrial control and other fields. |
