Low‑Power Relay

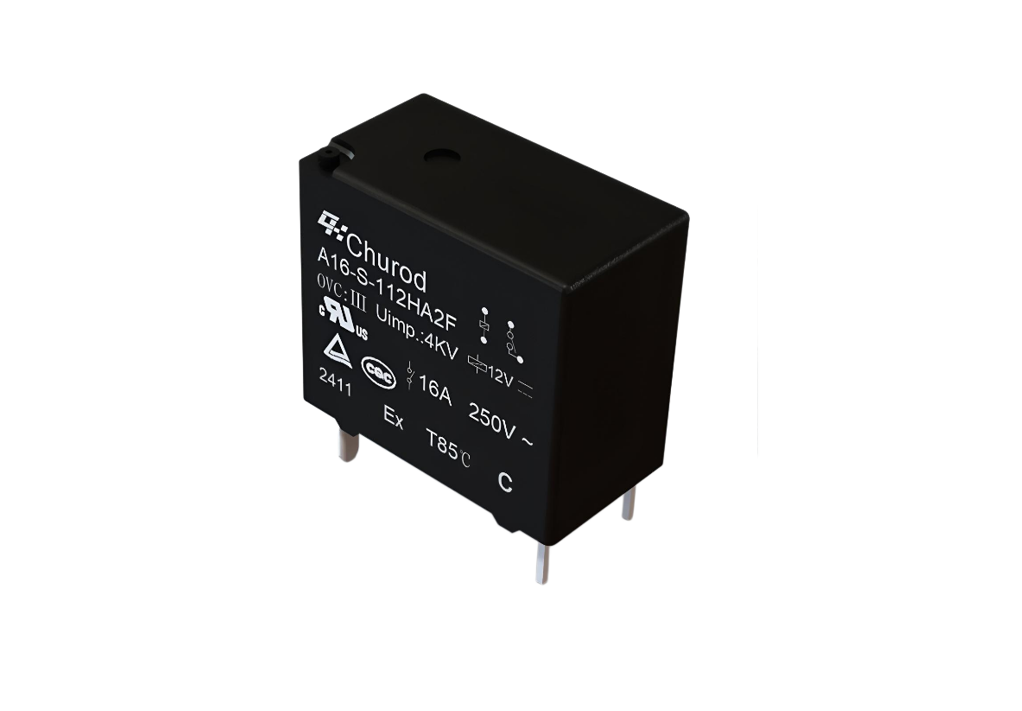

A16
1 NO, compact size and high capacity
TV-8 load rating
High dielectric withstand voltage of 4,000VAC between coil and contacts
Low profile, Class F insulation system
Outline dimensions: (19×10.2×17) mm
Certification：
Application：
Household appliances, smart home, server power supplies, industrial control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | — | Package Type: | Plastic sealed & flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.45W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class:： | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 277VAC/30VDC |
Rated Load Current: | 16A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤10 | Release Time (ms): | ≤4 | Operating Ambient Temperature： | -40℃~105℃ |
| Mechanical Life (cycles)： | 1000000 | Electrical Life (cycles)： | 100000(See datasheet for more details） | Weight (g): | ≈6 | Volume (mm³): | 19×10.2×17 | Applications： | Household appliances, smart home, server power supplies, industrial control and other fields. |
