Low‑Power Relay

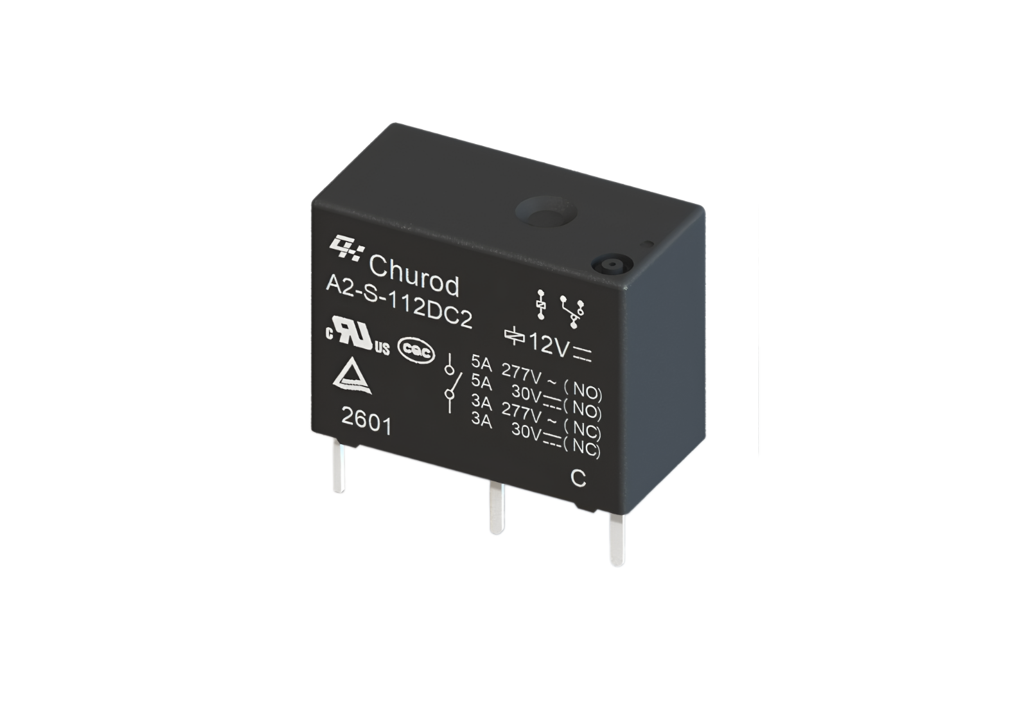

A2
1 Normally Open, 1 Change-over
Compact size, high dielectric withstand voltage of 4,000VAC between coil and contacts
Sensitive coil and standard coil versions available
Outline dimensions: (20.0×10.0×15.2) mm
Certification：
Application：
Household Appliances, Industrial Power Supplies, Industrial Control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 5、12、24 | Contact Form: | 1 NO, 1 CO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | — | Package Type: | Plastic sealed & flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.2W&0.4W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 277VAC/30VDC |
Rated Load Current: | 5A(NO)/3A(NC) | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤10 | Release Time (ms): | ≤5 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 10000000 | Electrical Life (cycles): | 100000(See datasheet for more details） | Weight (g): | ≈7 | Volume (mm³): | 20.0×10.0×15.2 | Applications： | Household Appliances, Industrial Power Supplies, Industrial Control and other fields. |
