Low‑Power Relay

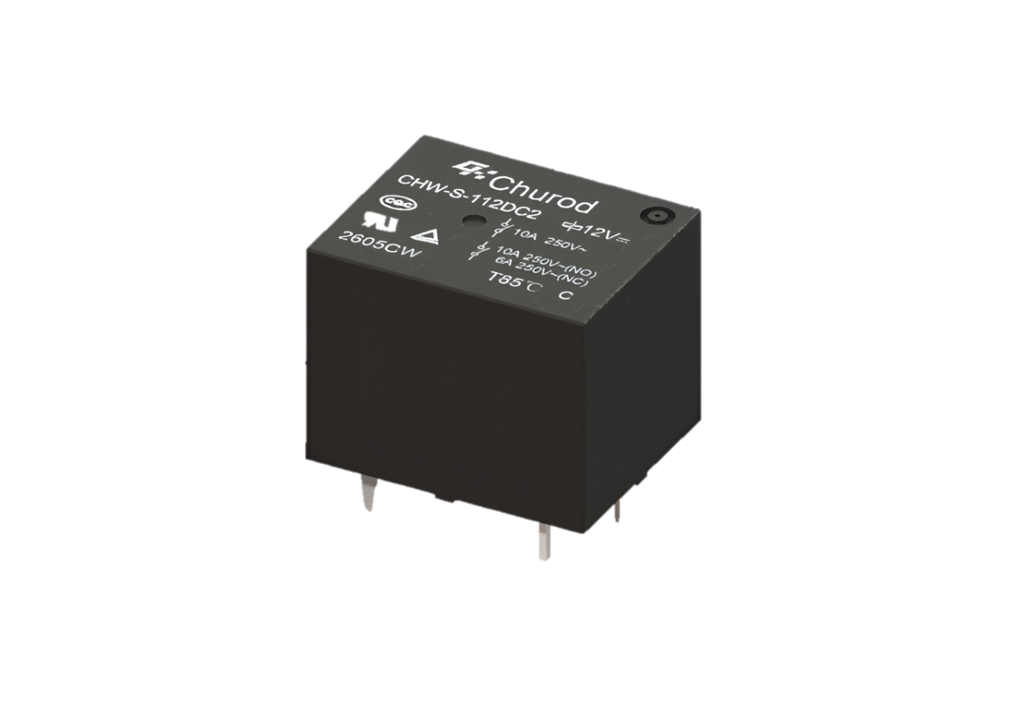

CHW
1 Normally Open, 1 Change-over
Compact size, low profile
Outline dimension: (19.2×15.5×15.3) mm
Certification：
Application：
Household appliances, smart home, industrial control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO, 1 CO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | — | Package Type: | Plastic sealed & flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.36W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 250VAC/30VDC |
Rated Load Current: | 15A | Dielectric Withstand Voltage (Between Coil and Contacts): | 1500VAC 1min | Operate Time (ms): | ≤10 | Release Time (ms): | ≤5 | Operating Ambient Temperature： | -40℃~105℃ |
| Mechanical Life (cycles)： | 10000000 | Electrical Life (cycles)： | 1000000(See datasheet for more details） | Weight (g): | ≈7 | Volume (mm³): | 19.2×15.5×15.3 | Applications: | Household appliances, smart home, industrial control and other fields. |
