Low‑Power Relay

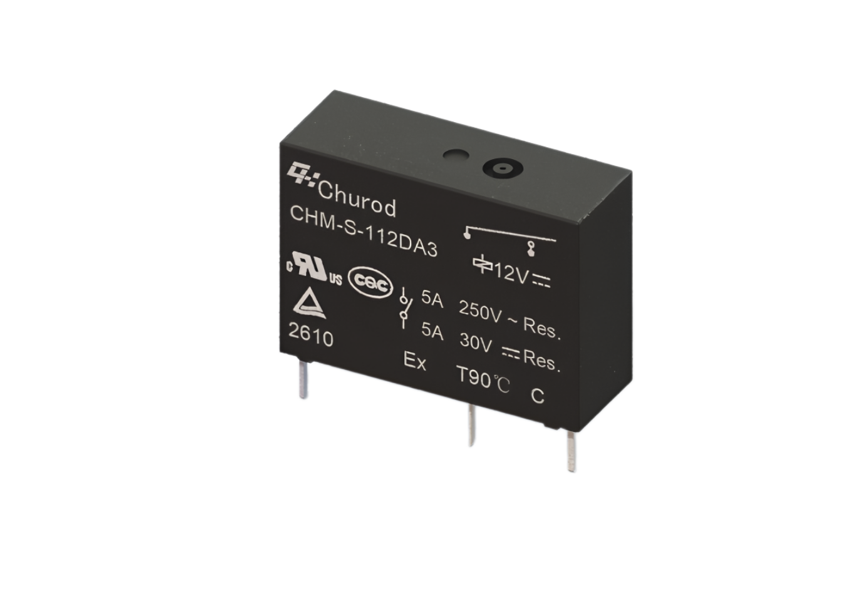

CHM
1 NO, ultra-thin and compact size
High dielectric withstand voltage of 4,000VAC between coil and contacts
Class F insulation system
Outline dimensions: (20.4×7.0×15.0) mm
Certification：
Application：
Household Appliances, Smart Meters, Industrial Control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | — | Package Type: | Plastic sealed & flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.2W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 250VAC/30VDC |
Rated Load Current:： | 5A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤10 | Release Time (ms): | ≤5 | Operating Ambient Temperature: | -40℃~90℃ |
| Mechanical Life (cycles): | 10000000 | Electrical Life (cycles): | 100000(See datasheet for more details） | Weight (g): | ≈4 | Volume (mm³): | 20.4×7.0×15。0 | Applications： | Household Appliances, Smart Meters, Industrial Control and other fields. |
