Low‑Power Relay

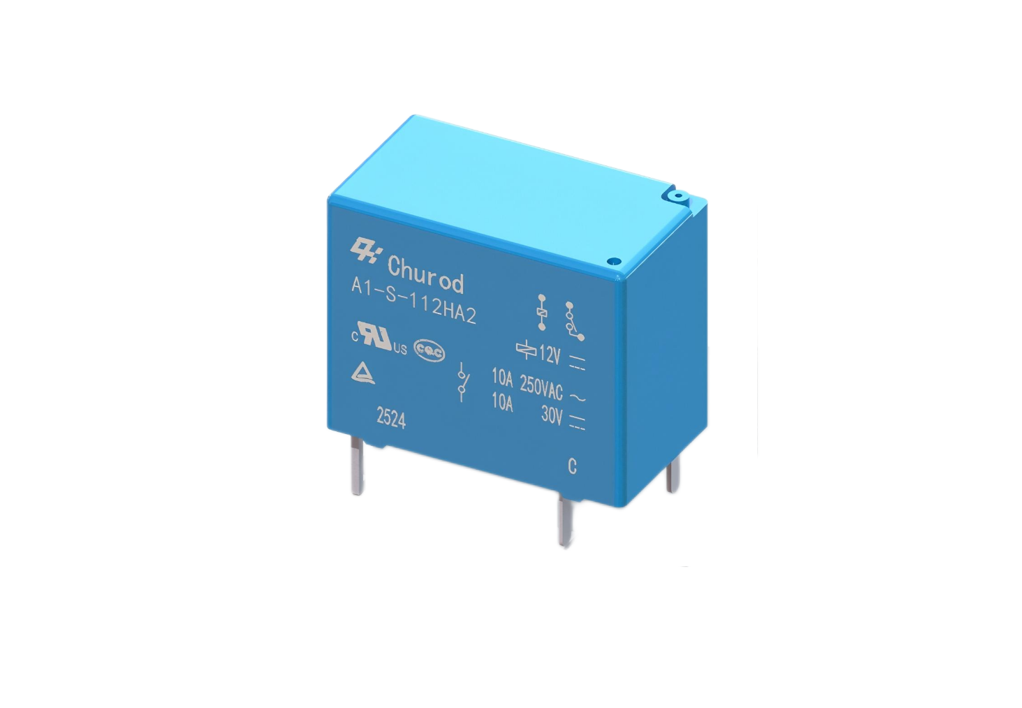

A1
1 NO, compact size
TV-5 load rating
High dielectric withstand voltage of 4,000VAC between coil and contacts
Class F insulation system
Outline dimensions: (18.2×10.2×14.9) mm
Certification：
Application：
Household Appliances, Smart Home, Server Power Supplies, Industrial Control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 5、12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | — | Package Type: | Plastic sealed & flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.2W、0.45W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 250VAC/30VDC |
Rated Load Current: | 3A、5A、8A、10A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤15 | Release Time (ms): | ≤4 | Operating Ambient Temperature: | -40℃~105℃ |
| Mechanical Life (cycles): | 10000000 | Electrical Life (cycles): | 100000(See datasheet for more details） | Weight (g): | ≈6 | Volume (mm³): | 18.2×10.2×14.9 | Applications： | Household Appliances, Smart Home, Server Power Supplies, Industrial Control and other fields. |
