Low‑Power Relay

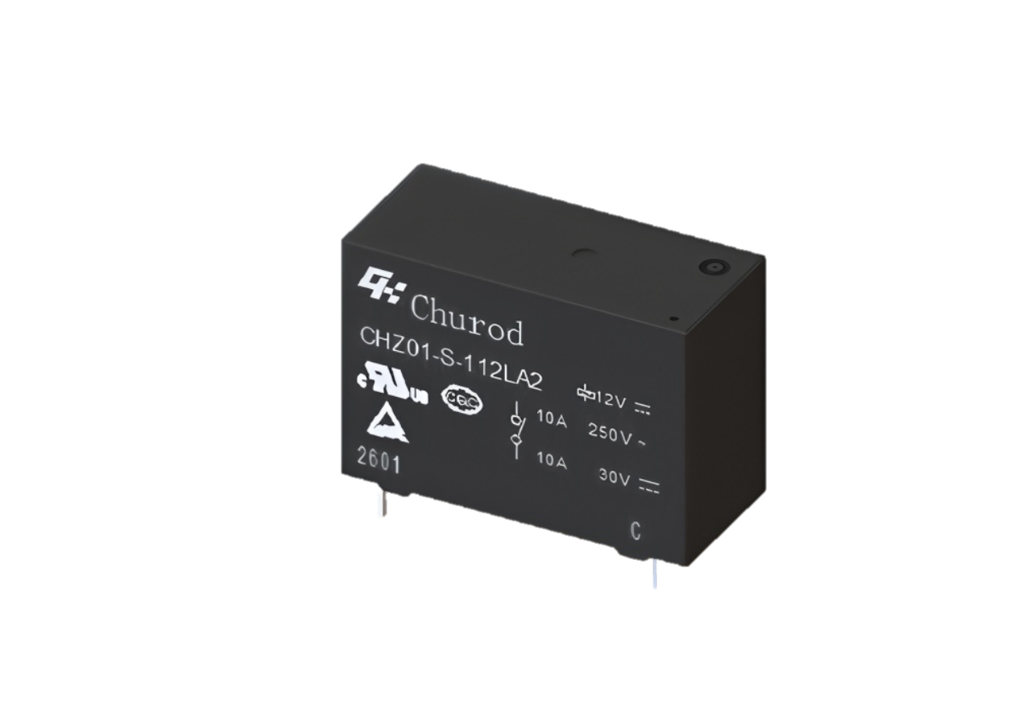

CHZ01
1 Normally Open or 1 Change-over
Compact size, high dielectric withstand voltage of 5,000VAC between coil and contacts
Sensitive coil type and standard coil type are available
Outline dimensions: (29.2×12.8×20.9) mm
Certification：
Application：
Industrial power supplies, industrial control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO, 1 CO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | — | Package Type: | Plastic sealed & flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.54W&0.72W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 277VAC/30VDC |
Rated Load Current: | 10A(NO)/5A(NC) | Dielectric Withstand Voltage (Between Coil and Contacts): | 5000VAC 1min | Operate Time (ms): | ≤20 | Release Time (ms): | ≤8 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 10000000 | Electrical Life (cycles): | 100000(See datasheet for more details） | Weight (g): | ≈13 | Volume (mm³): | 29.2×12.8×20.9 | Applications: | Industrial power supplies, industrial control and other fields. |
