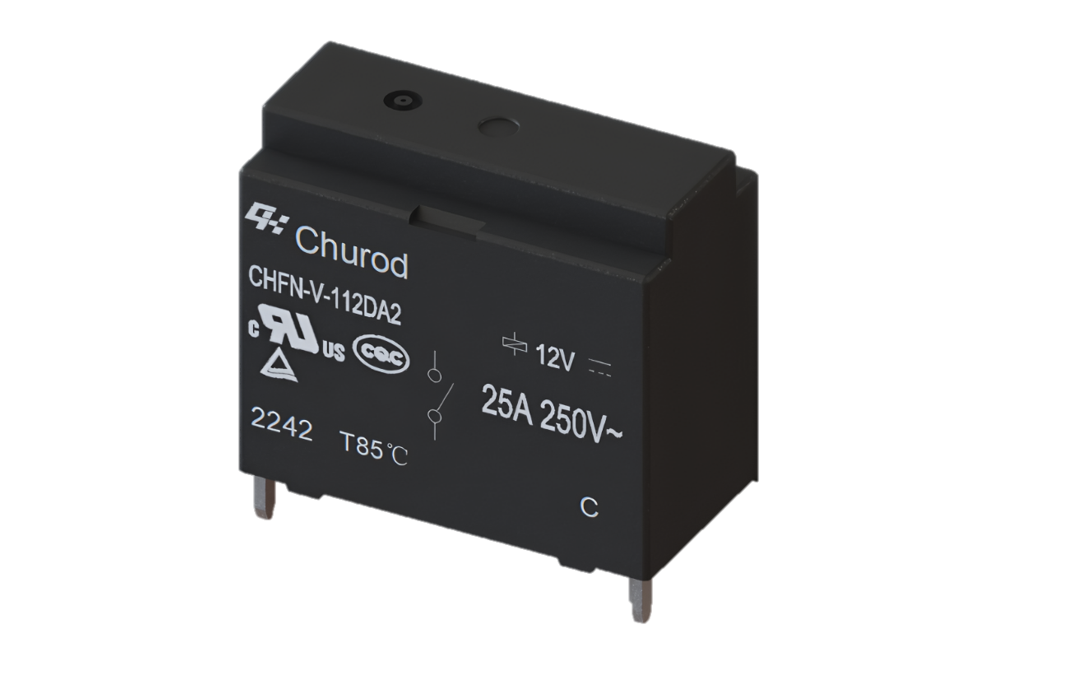

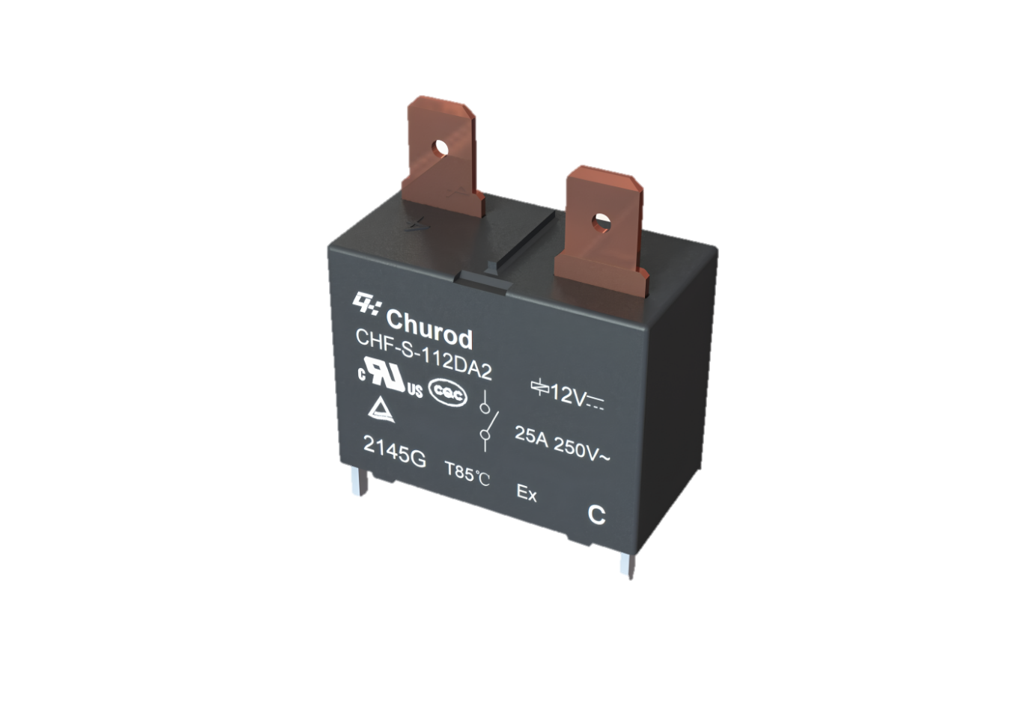

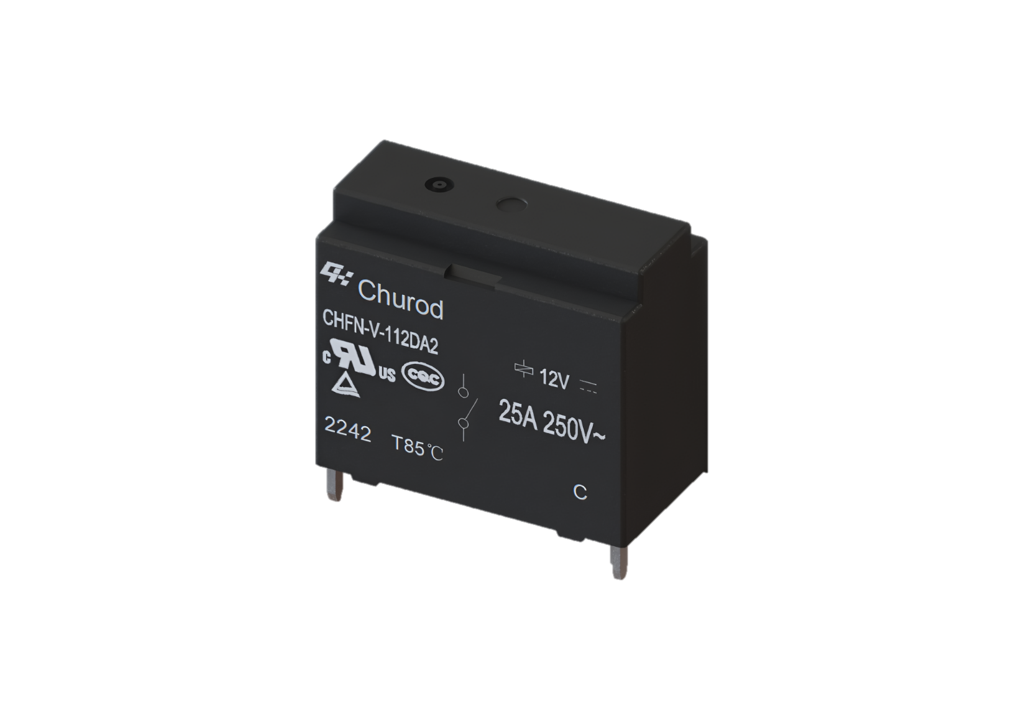

Low‑Power Relay
CHF&CHFN
1 NO, 20A & 25A load switching capacity
#250 quick-connect terminals or PCB circuit terminals
High dielectric withstand voltage of 4,500VAC between coil and contacts
High motor load capability, Class F insulation system
Outline dimensions:
CHF (30.1×15.7×23.3) mm
CHFN (30.1×15.7×26.5) mm
Certification：
Application：
Household Appliances, Industrial Control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | #250 quick-connect terminals、PCB Mount |
Mounting Type: | — | Package Type: | Plastic sealed & flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.9W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 250VAC/30VDC |
Rated Load Current: | 20A、25A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4500VAC 1min | Operate Time (ms): | ≤20 | Release Time (ms): | ≤10 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 10000000 | Electrical Life (cycles): | 100000(See datasheet for more details） | Weight (g): | ≈23 | Volume (mm³): | 30.1×15.7×23.3(CHF) 30.1×15.7×26.5(CHFN | Applications： | Household Appliances, Industrial Controland other fields. |
