High‑Power Relay

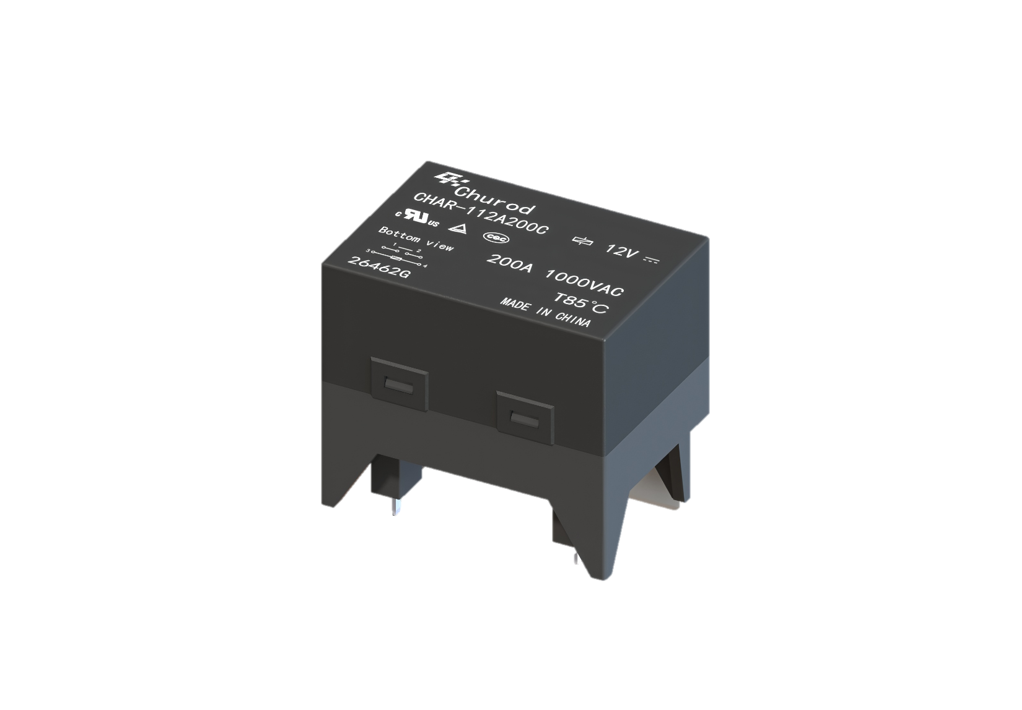

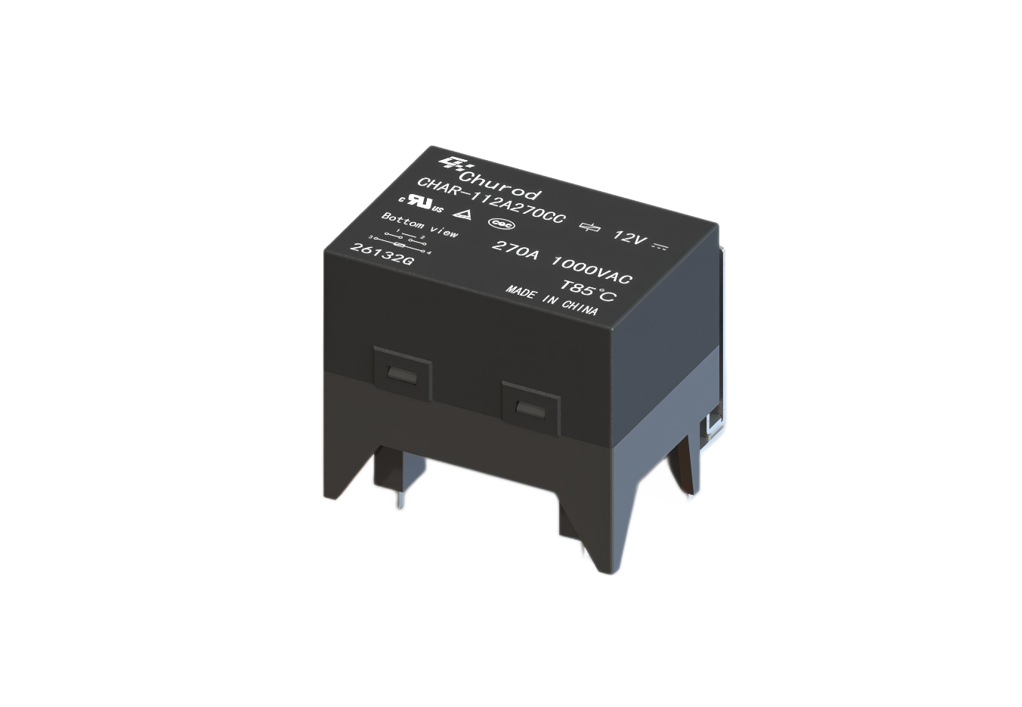

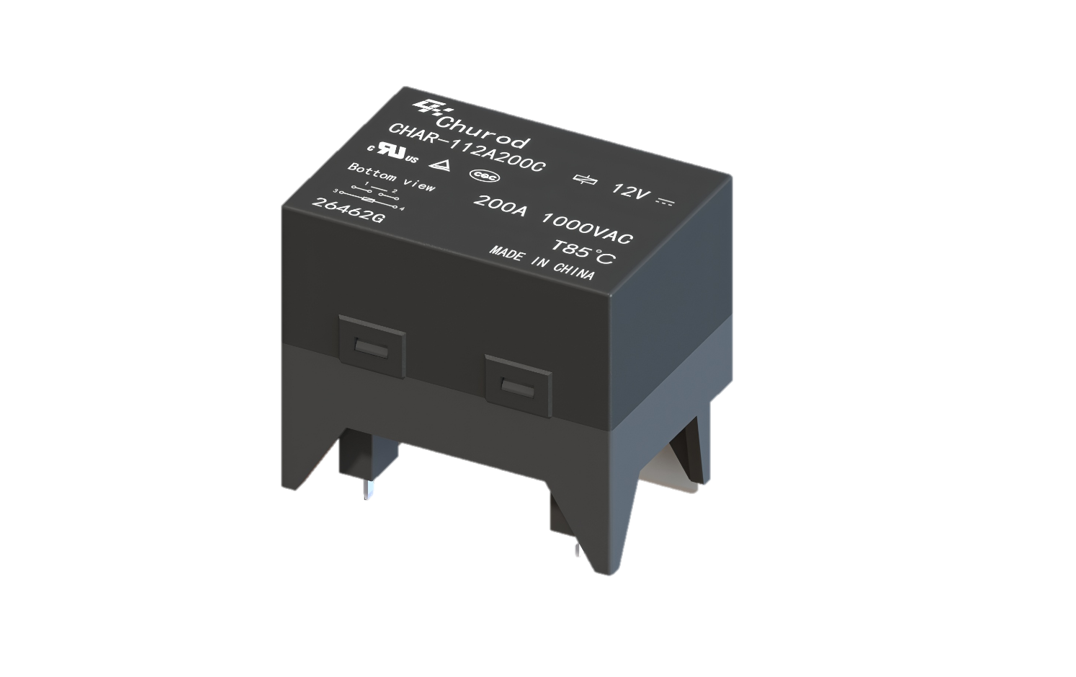

CHAR-200C&270C
1 Form A Double Break, contact gap ≥4.0mm
Ideal for photovoltaic inverter and energy storage PCS applications
Current carrying capacity: 200A, 270A & 280A
Low temperature rise, high short-circuit withstand capability
Dimensions: (62.7×44.4×55) mm
Certification：
Application：
Photovoltaic Inverters, Energy Storage PCS
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | PCB Mount | Package Type: | Flux Resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 4W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 1000VAC |
Rated Load Current: | 200A、270A、280A | Dielectric Withstand Voltage (Between Coil and Contacts): | 5000VAC 1min | Operate Time (ms): | ≤45 | Release Time (ms): | ≤10 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 1000000 | Electrical Life (cycles): | 30000(See datasheet for more details） | Weight (g): | ≈245 | Volume (mm³): | 62.7×44.4×55 | Applications: | Photovoltaic Inverters, Energy Storage PCS and other fields |
