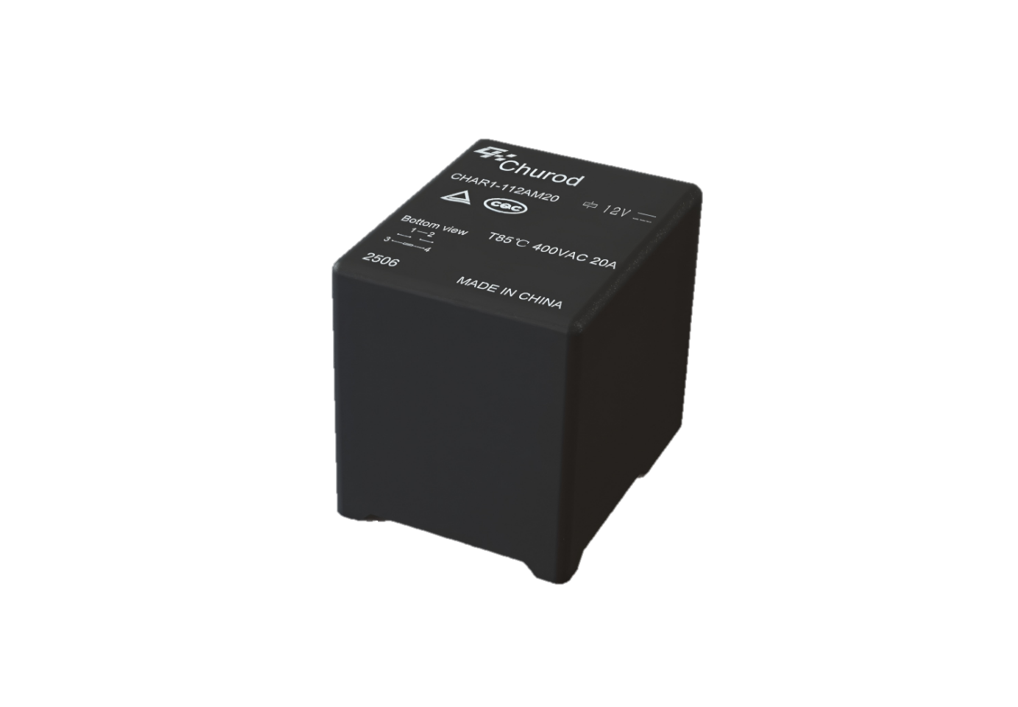

High‑Power Relay
CHAR1-20
1 Form A Double Break, contact gap ≥3.0mm
PCB mount or screw terminal mounting optional
Dimensions: PCB version (38×29.8×33.6) mm
TAB version (61.1×29.8×32) mm
Certification：
Application：
Photovoltaic Inverters, Energy Storage PCS, Industrial Control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount、Quick Connect Terminal |
Mounting Type: | PCB Soldering & Screw Terminal Mounting | Package Type: | Flux Resistant | Terminal Structure Type: | PCB Mount、#250/#187Quick Connect Terminal | Coil Power: | 2W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 400VAC |
Rated Load Current: | 20A | Dielectric Withstand Voltage (Between Coil and Contacts): | 3000VAC 1min | Operate Time (ms): | ≤30 | Release Time (ms): | ≤10 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 200000 | Electrical Life (cycles): | 6000(See datasheet for more details） | Weight (g): | ≈65 | Volume (mm³): | PCB : 38×29.8×33.6 TAB: 61.1×29.8×32 | Applications: | Photovoltaic Inverters, Energy Storage PCS, Industrial Control and other fields. |
