High‑Power Relay

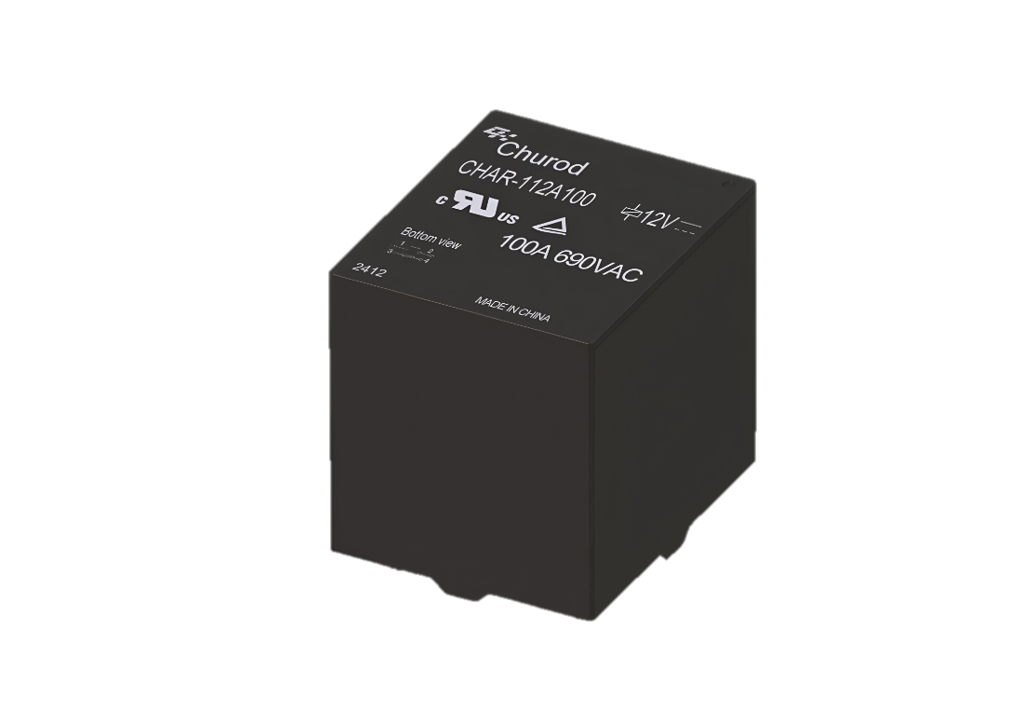

CHAR-A60~A160
Double-break normally open type, contact gap ≥4.0 mm
Highly suitable for applications in PV inverters and energy storage PCS
Current carrying capacity: 150A & 160A
Low temperature rise and high short-circuit resistance
Overall dimension: (47.7×40.1×45.1) mm
Certification：
Application：
PV inverters, energy storage PCS, industrial control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | PCB Soldering | Package Type: | Flux Resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 3.2W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, | Rated Load Voltage: | 277VAC、400VAC、690VAC |
Rated Load Current: | 60A、80A、100A、130A、150A、160A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤30 | Release Time (ms): | ≤10 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 1000000 | Electrical Life (cycles): | 30000(See datasheet for more details） | Weight (g): | ≈165 | Volume (mm³): | 47.7×40.1×45.1 | Applications: | PV inverters, energy storage PCS, industrial control and other fields. |
