Micro‑Fused Pressure Sensor

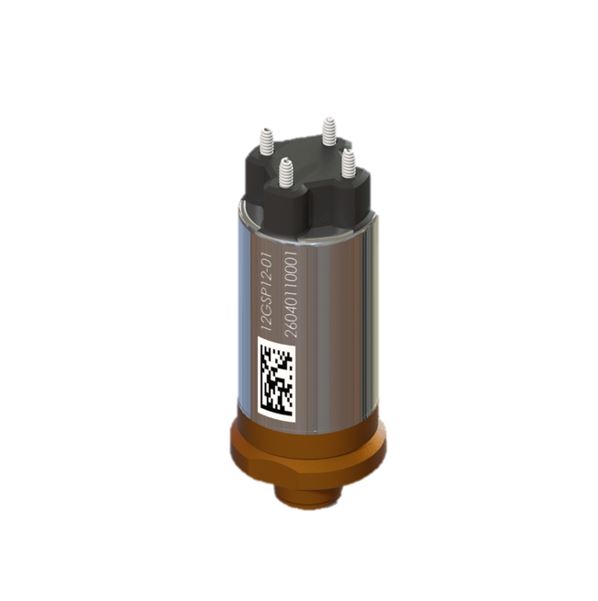

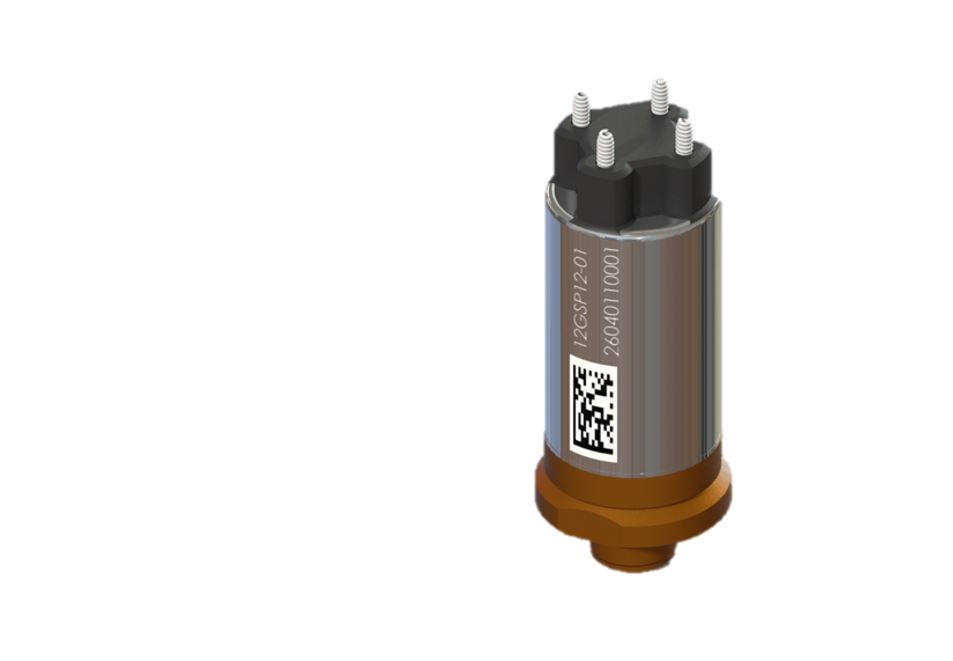

Compact Brake Hydraulic Pressure Sensor
Glass Micro-fused Technology
Ultra-compact package design
Hermetically sealed structure design with excellent sealing performance and media compatibility

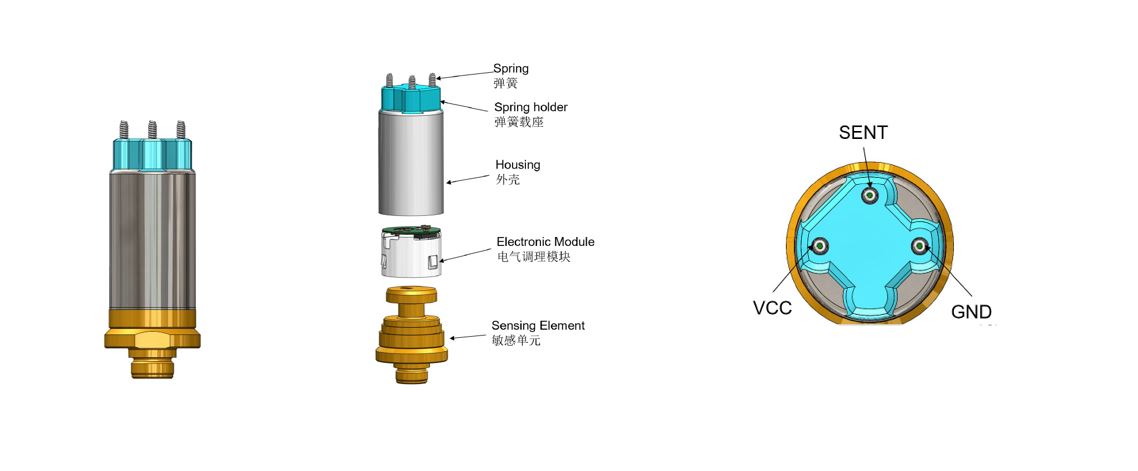

Reliable crimp mounting method and spring-loaded electrical connection
SENT output, compliant with SAE J2716
Meets functional safety requirements up to ASIL-C
Application：
Automotive
Product Details
| Item | Description | Rating | Item | Description | Rating |
| 1 | Operation Supply Voltage (Vcc) | 4.75~5.25 V | 8 | Full Scale Pressure | 250 Bar |
| 2 | Extended Operation Supply Voltage, degraded accuracy | 4.5~5.5 V | 9 | Proof Pressure | 300 Bar |
| 3 | Current Consumption | 10mA Max | 10 | Burst Pressure | 400 Bar |
| 4 | Output Load | 10kohm Pull-up | 11 | Application Medium | Brake fluid |
| 5 | Operation Temperature | -40~125 ℃ | 12 | Start-up Time, Time to first valid output after power-on | 20ms Max |
| 6 | Storage Temperature | -40~125 ℃ | 13 | Response Time, Cycle Time = 3us，SENT Pause= on，Response Time, tick time=3us, SENT pause=on, frame length set to minimum | 10ms Max |
| 7 | Output Type | SENT |
