Micro‑Fused Pressure Sensor

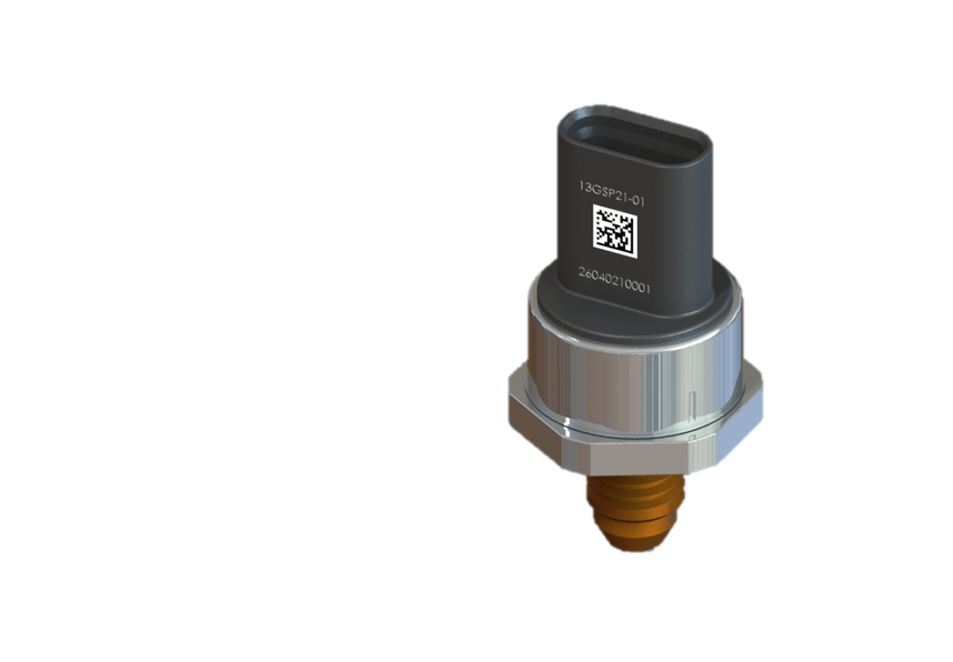

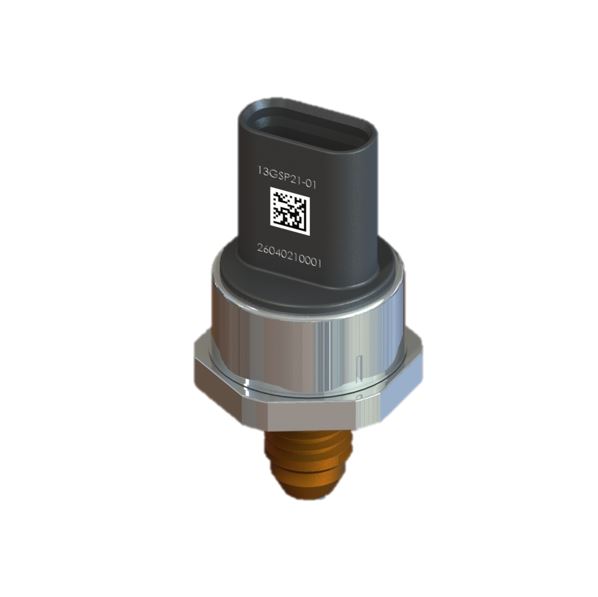

GDI Pressure Sensor

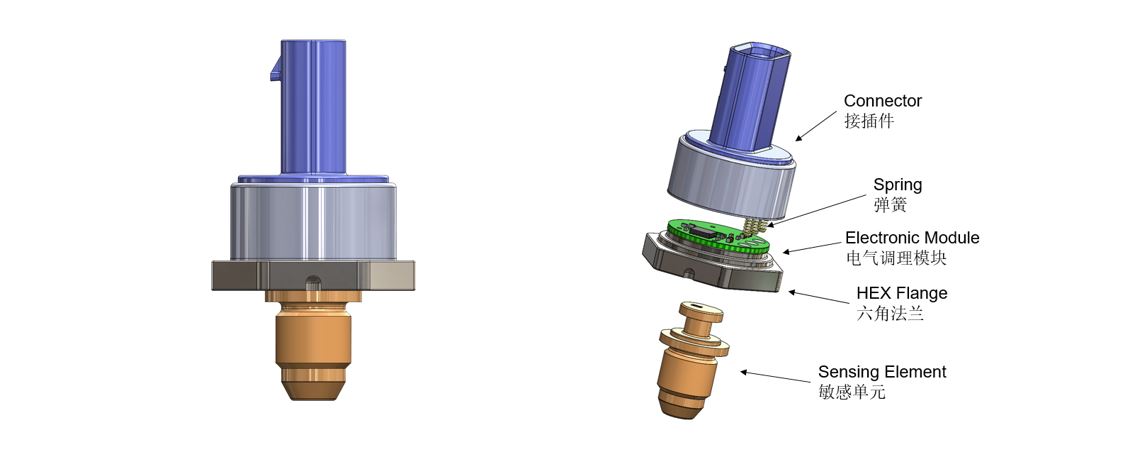

Glass Micro-fused Technology
Hermetically sealed structure design with excellent sealing performance and media compatibility
Measuring range 0–470 bar
Analog signal output
Application：
Automotive
Product Details
| Item | Description | Rating | Item | Description | Rating |
| 1 | Operation Supply Voltage (Vcc) | 4.75~5.25 VDC | 8 | Proof Pressure | 750 BarG |
| 2 | Current Consumption | 10mA Max | 9 | Burst Pressure | 1000 BarG |
| 3 | Pull-up Resistor | 4.4~4.87 kohm | 10 | Response Time | 2ms Max |
| 4 | Operation Temperature | -40~140 ℃ | 11 | Mounting Torque (Socket Wrench Only) | 30~35 Nm，40 Nm.Max |
| 5 | Storage Temperature | -40~85 ℃ | 12 | Reverse Voltage | -28 V |
| 6 | Output Type | Analog | 13 | Overvoltage | 40 V |
| 7 | Full Scale Pressure | 470 BarG | 14 | IP Protection Rating | IP67 |
