Ceramic Pressure Sensor

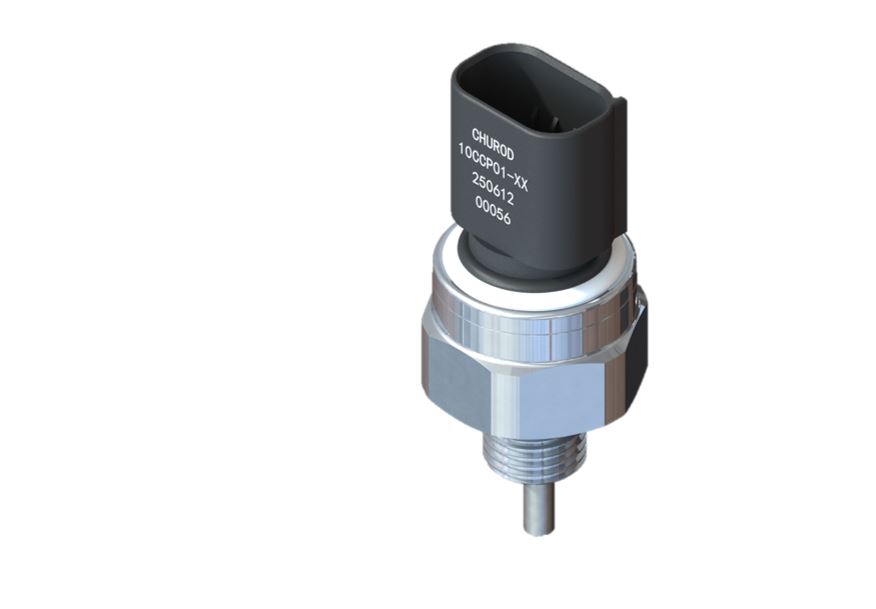

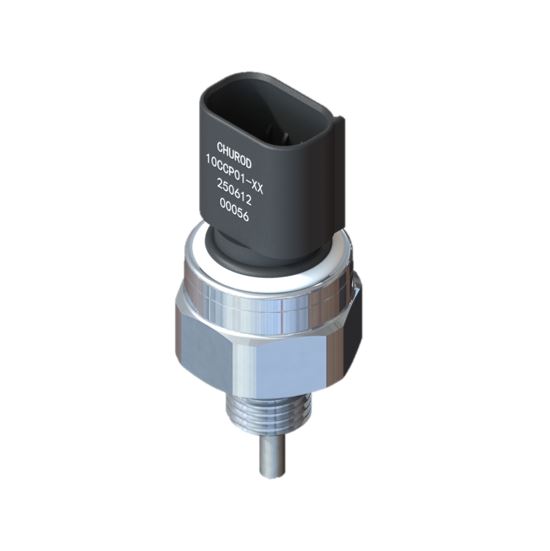

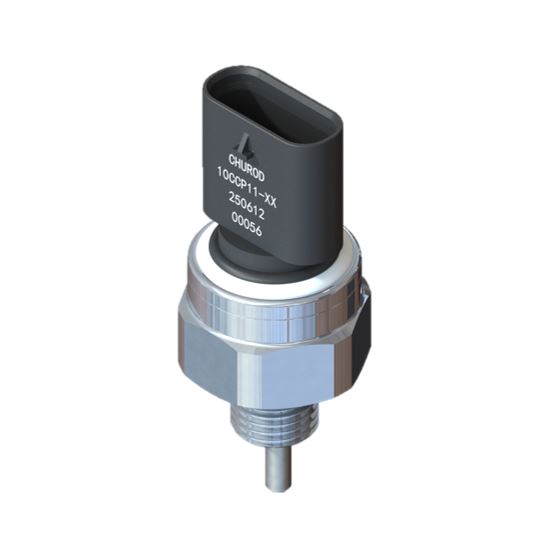

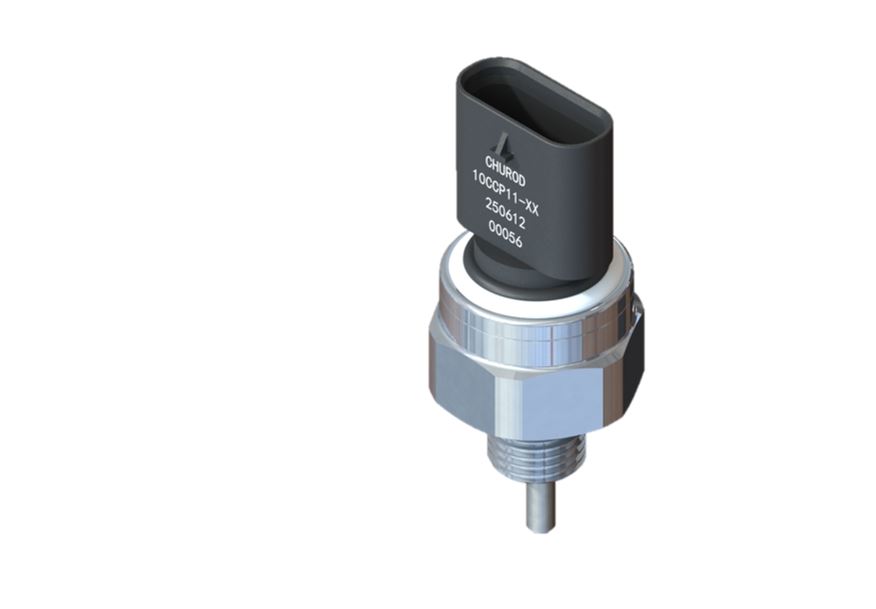

Refrigerant Temperature‑Pressure Sensor
Simple structure and high reliability
High precision with digital multi-point pressure and temperature compensation
Custom development to fit diverse mounting interfaces
Application：
Automotive
Product Details
| PARAMETERS | UNIT | 10CCP01-XX | 10CCP11-XX | ||||
| MIN VALUE | NOM VALUE | MAX VALUE | MIN VALUE | NOM VALUE | MAX VALUE | ||
| SUPPLY VOLTAGE | V | 4.75 | 5 | 5.25 | 4.75 | 5 | 5.25 |
| WORKING PRESSURE | barA | 0.603 | 10.256 | 1.848 | 35.182 | ||
| PROOF PRESSURE | barA | 30 | 64 | ||||
| BURST PRESSURE | barA | 42 | 100 | ||||
| WORKING TEMPERATURE | ℃ | -40 | 140 | -40 | 150 | ||
TEMPERATURE RESPONSE TIME | S (T63/T90) | 3/5 | 3/5 | ||||
| WORKING MEDIUM | - | R134a, HFO1234yf, R290 | |||||
Ceramic Capacitive Pressure Sensing Principle
Deformation of ceramic strain gauges under pressure alters capacitance between gold-plated electrodes.
Capacitance variation is measured and processed to output pressure-dependent voltage signals.
Different pressure ranges are achieved by adjusting the thickness and diameter of ceramic strain gauges.
It features good media compatibility, no fatigue, no plastic deformation, negligible hysteresis and high reliability.
