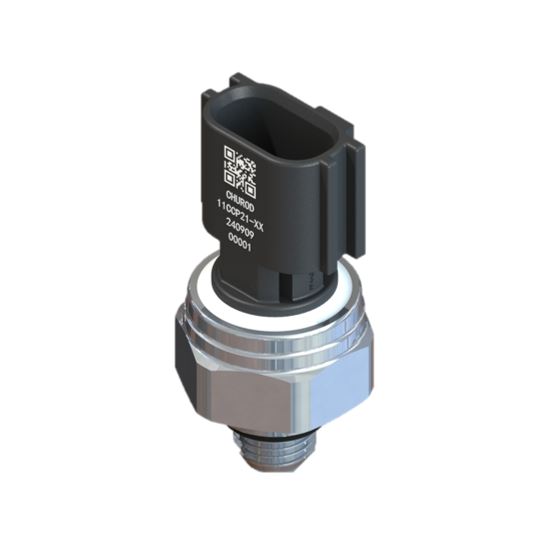

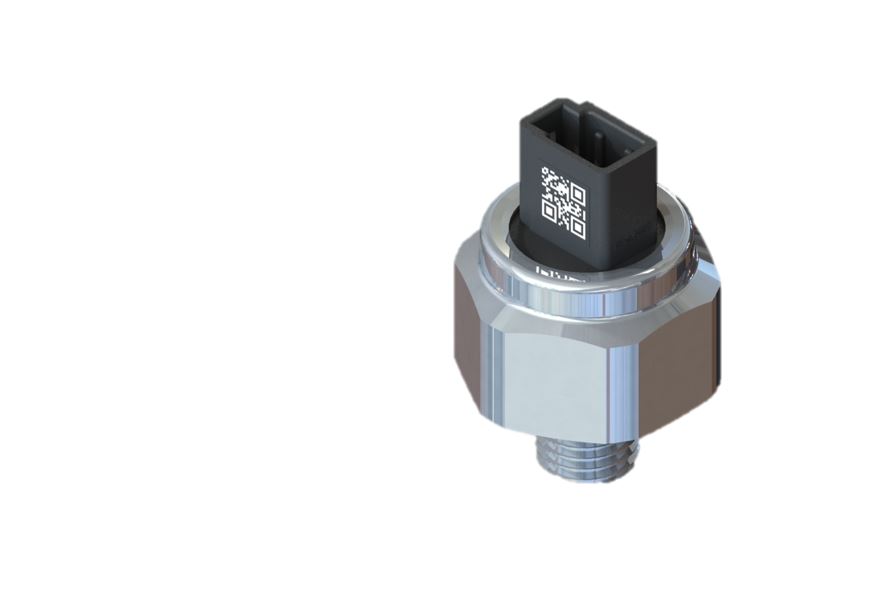

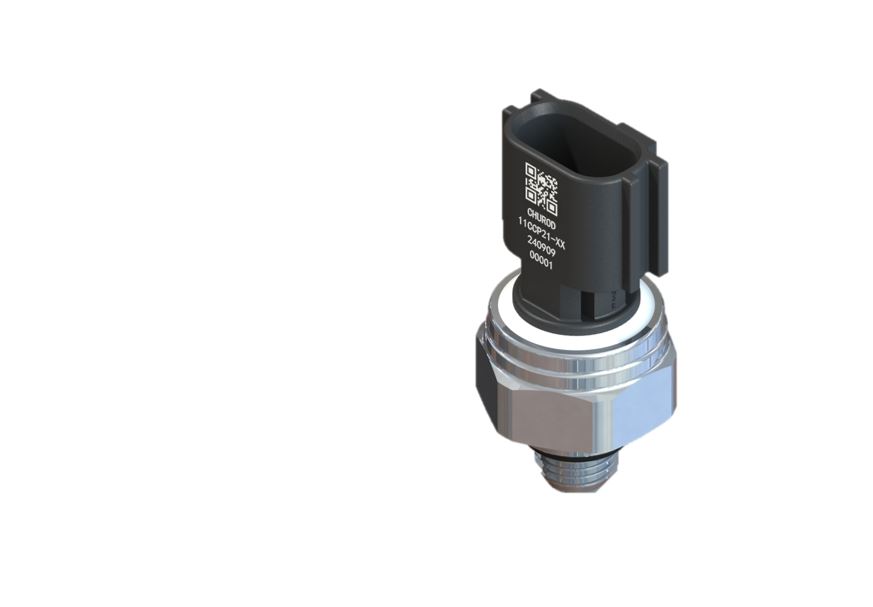

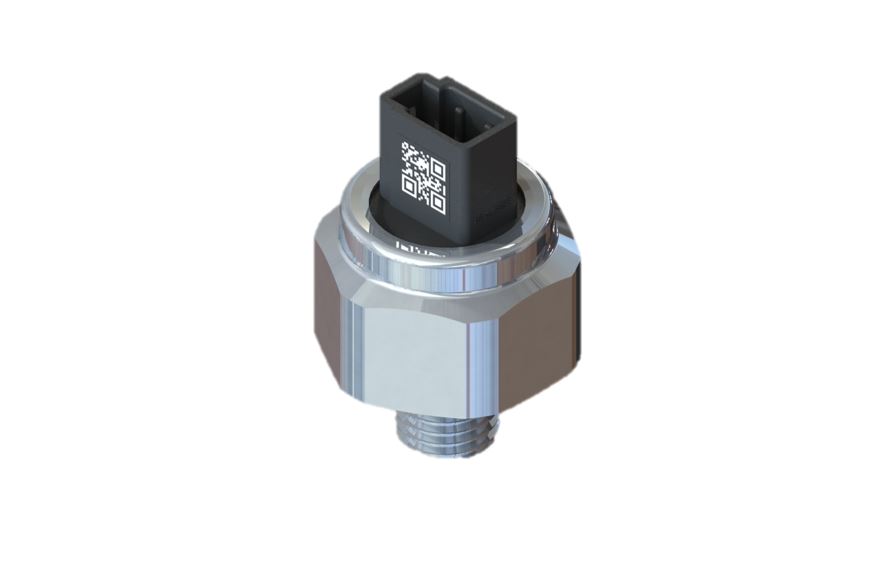

Transmission Pressure Sensor
Simple structure with superior operational reliability
High accuracy enabled by digital multi-point pressure and temperature compensation
Customized development to adapt to diverse mounting interfaces
Application：
Automotive
Product Details
| Parameter | M Value | NOM Value | MAX Value | Unit |
| Power Voltage | 4.75 | 5 | 5.25 | V |
| Pressure Range | 1 | - | 20 | barA |
| Safety Pressure | 40 | - | - | barA |
| Burst Pressure | 60 | - | - | barA |
| Working Temprature | -40 | - | 140 | ℃ |
| Output | 10 | - | 90 | %Vs |
| Installation Torque | 11 | 13 | 15 | Nm |
| Measurement Medium | Transmission Oil | |||

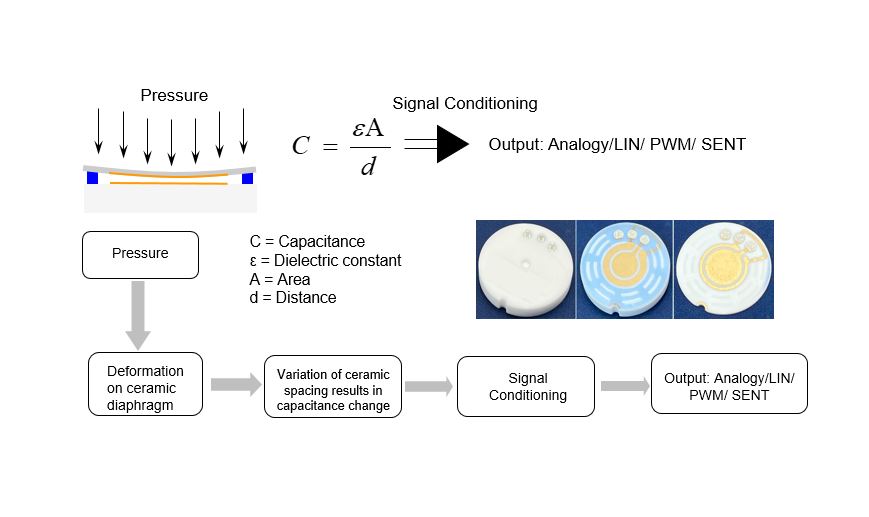

Ceramic Capacitive Pressure Sensing Principle
Deformation of ceramic strain gauges under pressure alters capacitance between gold-plated electrodes.
Capacitance variation is measured and processed to output pressure-dependent voltage signals.
Different pressure ranges are achieved by adjusting the thickness and diameter of ceramic strain gauges.
It features good media compatibility, no fatigue, no plastic deformation, negligible hysteresis and high reliability.
