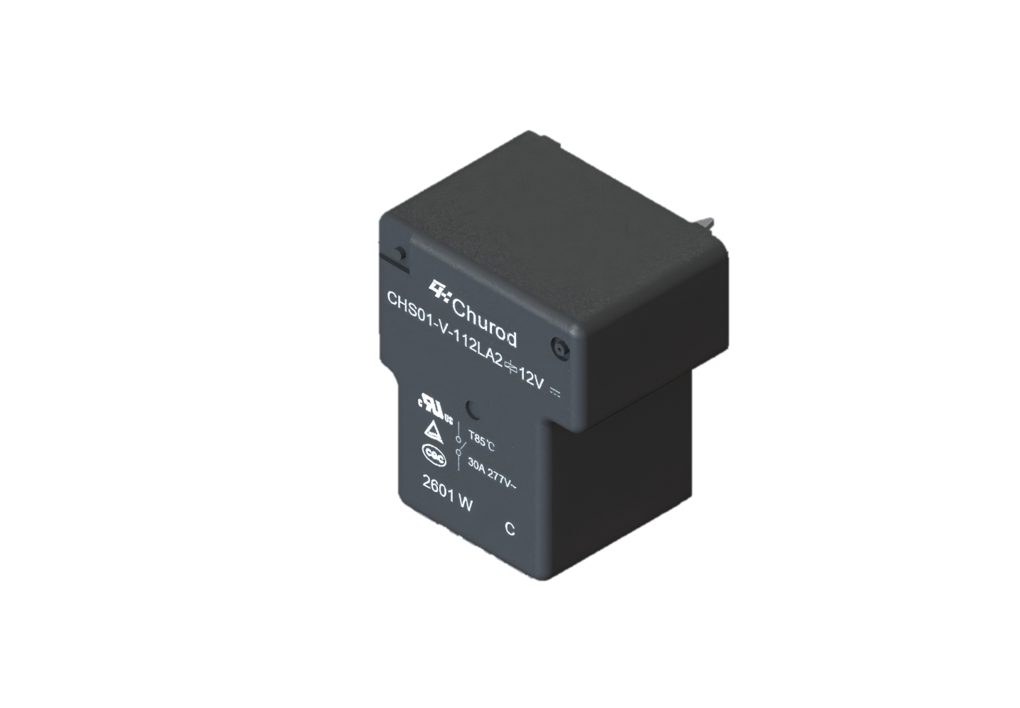

Low‑Power Relay
CHS-L
1 Normally Open, 1 Change-over
Compact low-profile design, high capacity, max. 60A load capability
High dielectric withstand voltage of 4,000VAC between coil and contacts is optional
High motor load capability, Class F insulation system
Outline dimension:
CHS01 (32.1×27.05×20.2) mm
CHS02 (32.5×27.3×19.9) mm
Certification：
Application：
Household appliances, power modules, charging & discharging piles, industrial control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO, 1 CO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | — | Package Type: | Plastic sealed & flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.9W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 277VAC/30VDC |
Rated Load Current: | NO: 30A、40A、50A、60A NC: 10A、20A、30A | Dielectric Withstand Voltage (Between Coil and Contacts): | 2500VAC & 4000VAC 1min | Operate Time (ms): | ≤15 | Release Time (ms): | ≤10 | Operating Ambient Temperature： | -40℃~85℃ |
| Mechanical Life (cycles)： | 10000000 | Electrical Life (cycles) | 100000(See datasheet for more details） | Weight (g): | ≈27g(CHS01), ≈32g(CHS02) | Volume (mm³): | CHS01 : 32.1×27.05×20.2 CHS02: 32.5×27.3×19.9 | Applications: | Household appliances, power modules, charging & discharging piles, industrial control and other fields, |
