Power Magnetic Latching Relay

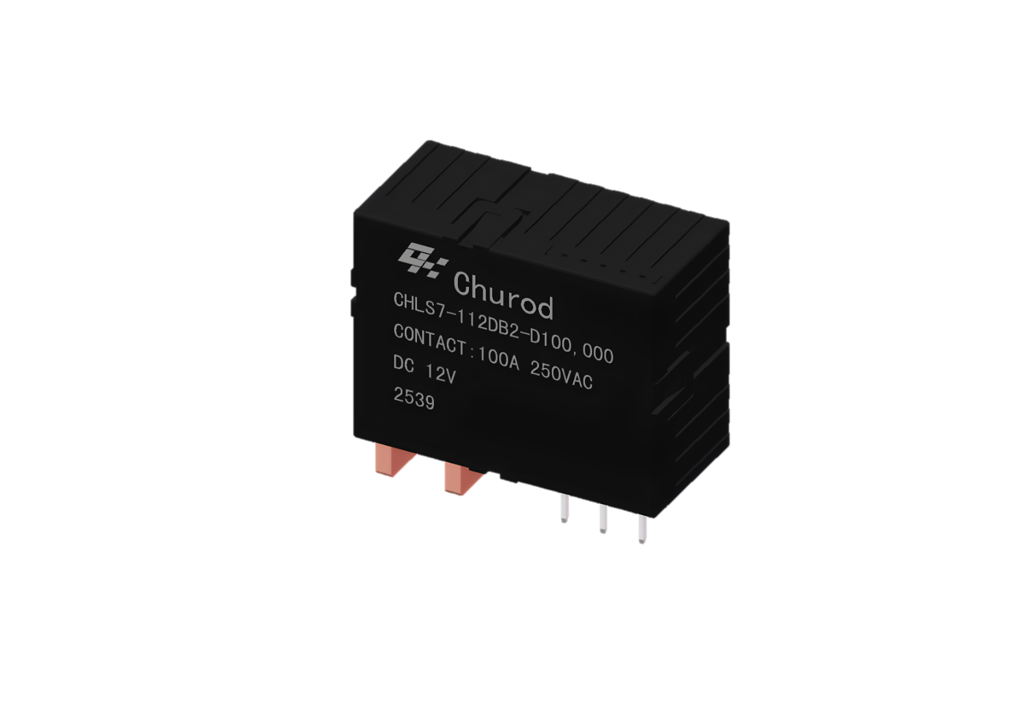

CHLS7
4500A Short-circuit Withstand Capability
100A @ 250VAC load capacity
High dielectric strength of 4,000VAC between coil and contacts
Dimensions: (39×30×18.5) mm
Certification：
Application：
Smart Meters, Electrical Equipment Control, etc.
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 Form A, 1 Form B | Contact Number: | Single Contact | Terminal Type: | Quick-connect, |
Mounting Type: | - | Package Type: | Dust-proof | Terminal Structure Type: | Quick-connect, Connector | Coil Power: | 3W、1.5W | Coil Characteristic: | Bistable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 250VAC |
Rated Load Current: | 100A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤20 | Release Time (ms): | ≤20 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 100000 | Electrical Life (cycles): | 10000(See datasheet for more details） | Weight (g): | ≈65 | Volume (mm³): | 39×30×18.5 | Applications: | Smart Meters, Electrical Equipment Control, etc. |
