Power Magnetic Latching Relay

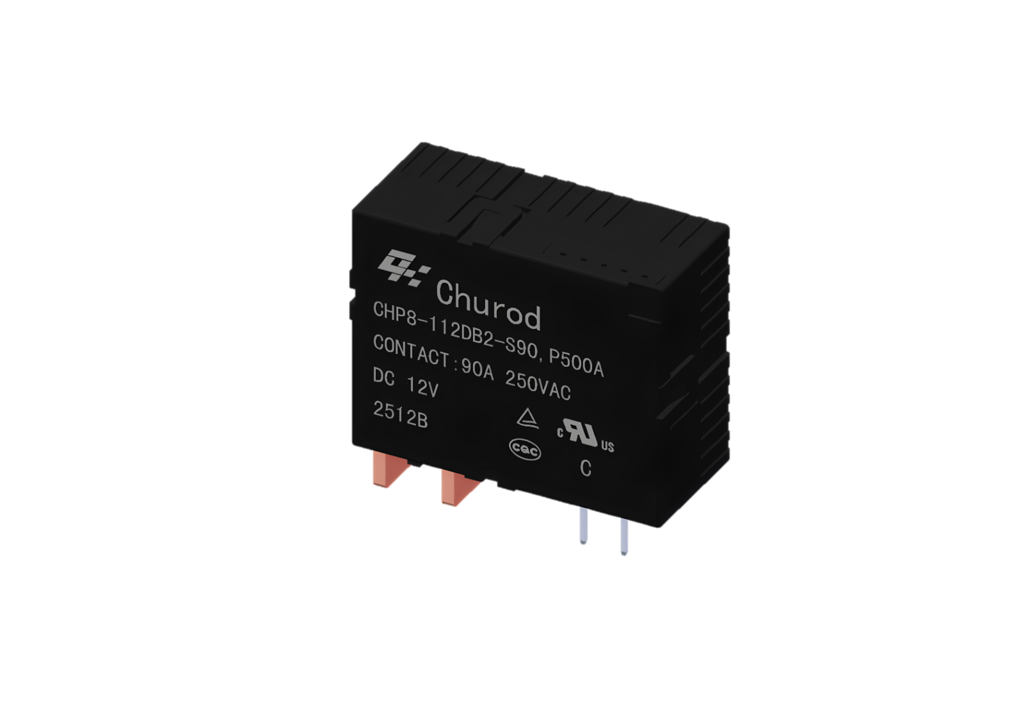

CHP8
4500A Short-circuit Withstand Capability
90A @ 250VAC load capacity
High dielectric strength of 4,000VAC between coil and contacts
Dimensions: (38×16.5×30) mm
Certification：
Application：
Smart Meters, Charging Pile Power Modules
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 Form A, 1 Form B | Contact Number: | Single Contact | Terminal Type: | PCB Mount, Quick-connect |
Mounting Type: | - | Package Type: | Dust-proof | Terminal Structure Type: | PCB Mount, Quick-connect | Coil Power: | 3W、1.5W | Coil Characteristic: | Bistable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 250VAC |
Rated Load Current: | 90A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤20 | Release Time (ms): | ≤20 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 100000 | Electrical Life (cycles): | 10000(See datasheet for more details） | Weight (g): | ≈40 | Volume (mm³): | 38×16.5×30 | Applications: | Smart Meters, Charging Pile Power Modules |
