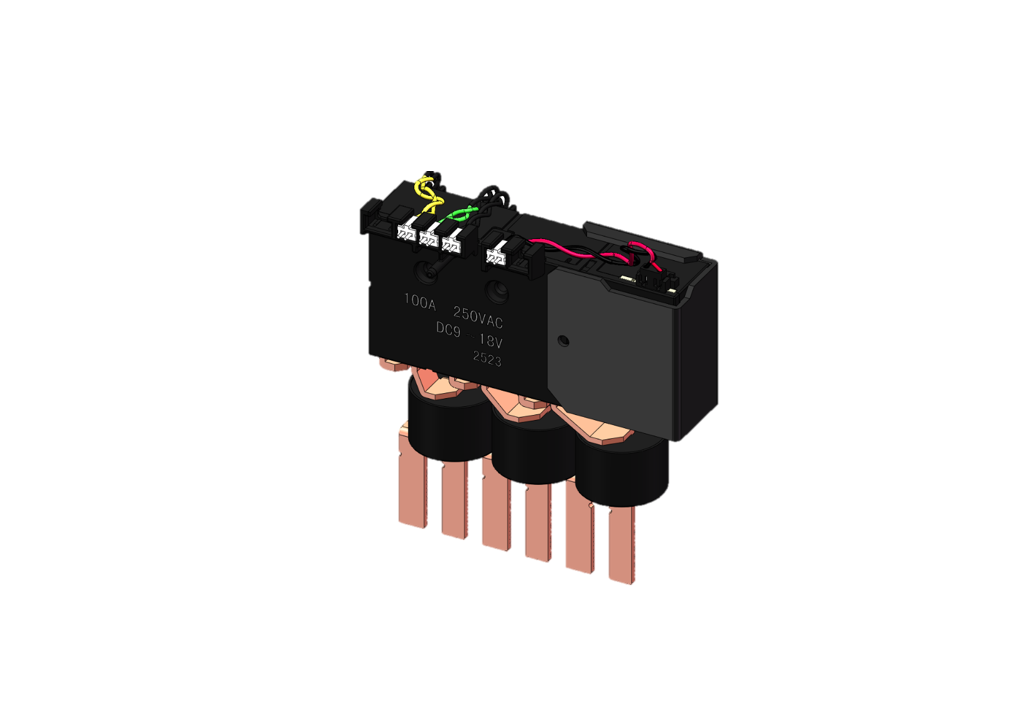

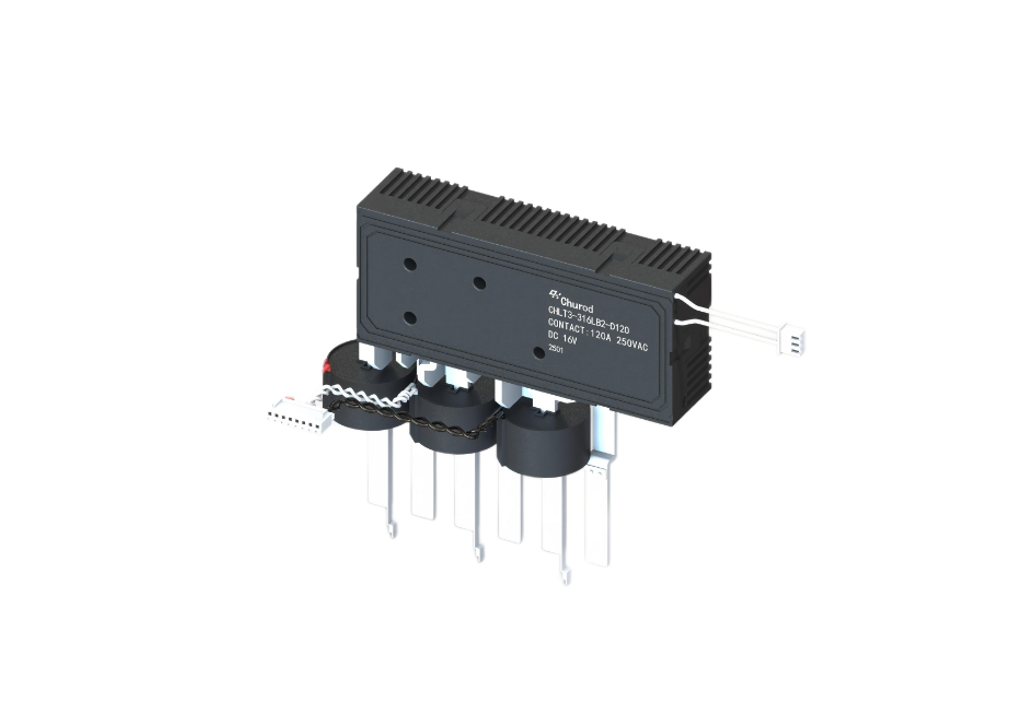

Power Magnetic Latching Relay
CHLT3
4500A Short-circuit Withstand Capability
Three-channel load control, 125A @ 250VAC load capacity
High dielectric strength of 4,000VAC between coil and contacts
Dimensions: (112.2×57×29.8) mm
Certification：
Application：
Smart Meters
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 9、12、24 | Contact Form: | 3 Form A, 3 Form B | Contact Number: | 3 poles | Terminal Type: | Quick-connect |
Mounting Type: | - | Package Type: | Dust-proof | Terminal Structure Type: | Quick-connect, Connector | Coil Power: | 5W、10W | Coil Characteristic: | Bistable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 250VAC |
Rated Load Current: | 100A、120A、125A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤30 | Release Time (ms): | ≤30 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 100000 | Electrical Life (cycles): | 10000(See datasheet for more details） | Weight (g): | ≈310 | Volume (mm³): | 112.2×57×29.8 | Applications: | Smart Meters |
