Power Magnetic Latching Relay

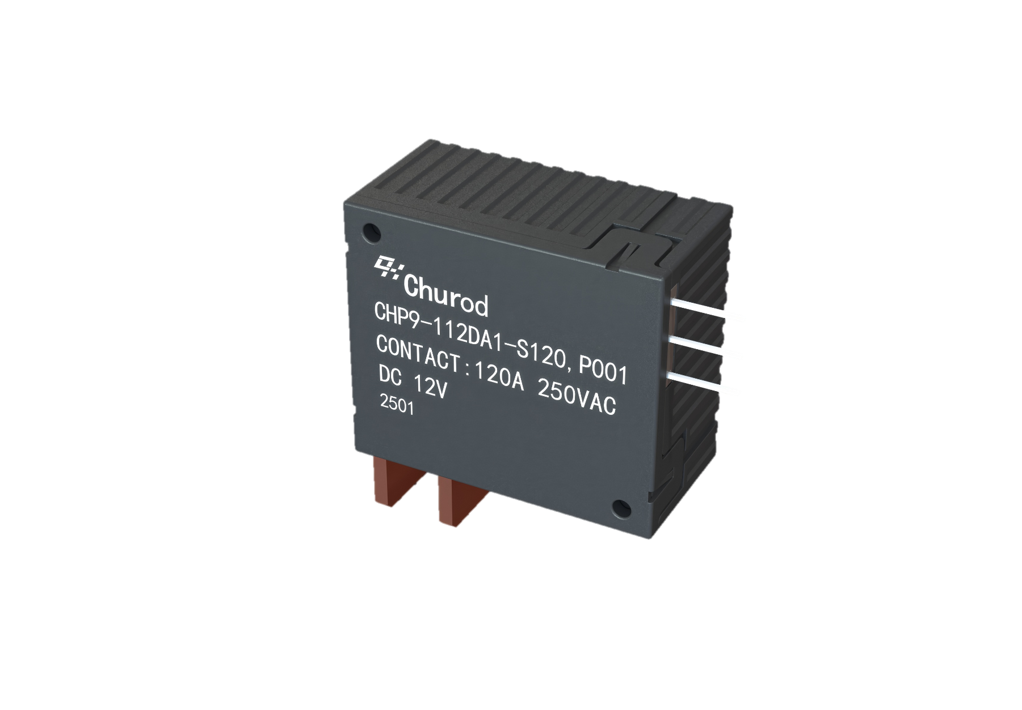

CHP9
4500A Short-circuit Withstand Capacity
250VAC, 120A Load Switching Capacity
High dielectric strength of 4,000VAC between coil and contacts
Dimensions: (43×37×21.6) mm
Certification：
Application：
Smart Meters, Charging Pile Power Modules
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 Form A, 1 Form B | Contact Number: | Single Contact | Terminal Type: | PCB Mount, Quick-connect |
Mounting Type: | - | Package Type: | Dust-proof | Terminal Structure Type: | PCB Mount, Quick-connect | Coil Power: | 3W、6W | Coil Characteristic: | Bistable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 250VAC |
Rated Load Current: | 120A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤20 | Release Time (ms): | ≤20 | Operating Ambient Temperature | -40℃~85℃ |
| Mechanical Life (cycles)： | 100000 | Electrical Life (cycles)： | 10000(See datasheet for more details） | Weight (g): | ≈70 | Volume (mm³): | 43×37×21.6 | Applications： | Smart Meters, Charging Pile Power Modules |
