Low‑Power Relay

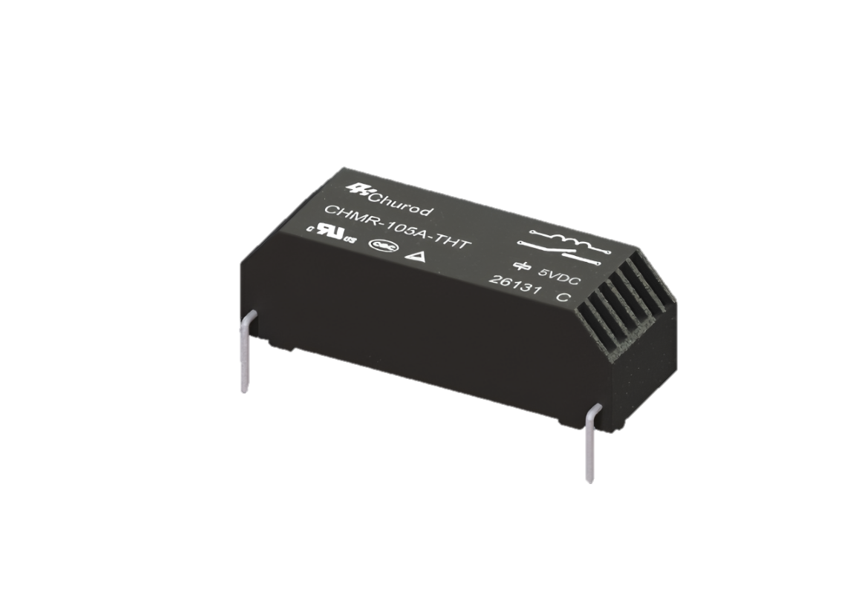

CHMR
1 NO, Reed Relay
Withstand voltage between contacts: ≥3.5kV DC
Reliable for low micro-load current applications; excellent weather resistance
Outline dimension: (30.2×10.2×10) mm
Certification：
Application：
Current management systems, photovoltaic inverters, insulation check, electric vehicles
Main Parameters
Coil Voltage Type： | DC | Coil Operating Voltage (V): | 5、12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type： | — | Package Type: | Waterproof Sealed Type | Terminal Structure Type: | PCB Mount | Coil Power: | 0.313W | Coil Characteristic: | Monostable |
Contact Material: | Rhodium Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 1000VDC |
Rated Load Current: | 15mA | Dielectric Withstand Voltage (Between coil and contacts): | 7000VDC 1min | Operate Time (ms): | ≤1.5 | Release Time (ms): | ≤0.5 | Operating Ambient Temperature: | -40℃~105℃ |
| Mechanical Life (cycles): | 1000000 | Electrical Life (cycles): | 50000(See datasheet for more details） | Weight (g): | 约4.5 | Volume (mm³): | 30.2×10.2×10 | Applications： | Current management systems, photovoltaic inverters, insulation check, electric vehicles and other fields. |
