Low‑Voltage DC Relay

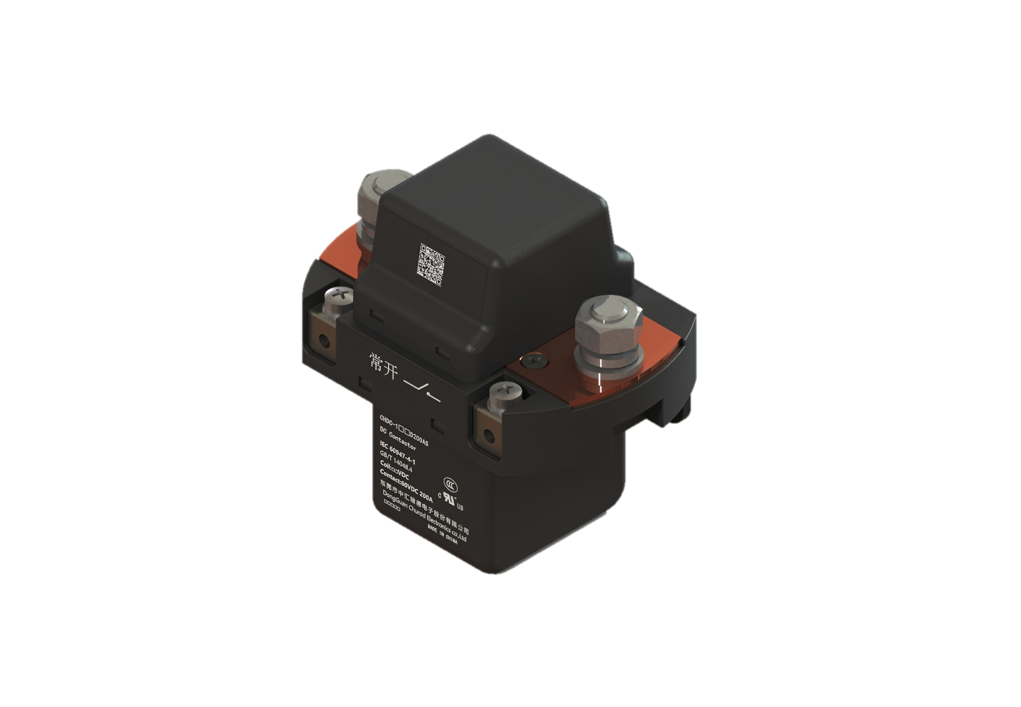

CHDC-200AS&200BS
Double-break contacts with high DC load capacity
Normally Open or Normally Closed contact forms optional
Superior resistance to overcurrent and short-circuit
Dimensions: (85×56×84) mm
Certification：
Application：
Communication Power Supplies, DC Test Power Supplies, Industrial Equipment Control, etc.
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24、48、60 | Contact Form: | 1 Form A, 1 Form B | Contact Number: | Single Contact | Terminal Type: | Bolts, |
Mounting Type: | Screw Mount | Package Type: | Dust-proof | Terminal Structure Type: | Bolt Terminals | Coil Power: | 90W(@12V)、120W(@24V) | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 60VDC、80VDC |
Rated Load Current: | 200A | Dielectric Withstand Voltage (Between Coil and Contacts): | 1500VAC 1min | Operate Time (ms): | ≤30 | Release Time (ms): | ≤30 | Operating Ambient Temperature: | -40℃~70℃ |
| Mechanical Life (cycles): | 100000 | Electrical Life (cycles): | 6000(See datasheet for more details） | Weight (g): | ≈420 | Volume (mm³): | 85×56×84 | Applications: | Communication Power Supplies, DC Test Power Supplies, Industrial Equipment Control, etc. |
