Low‑Voltage DC Relay

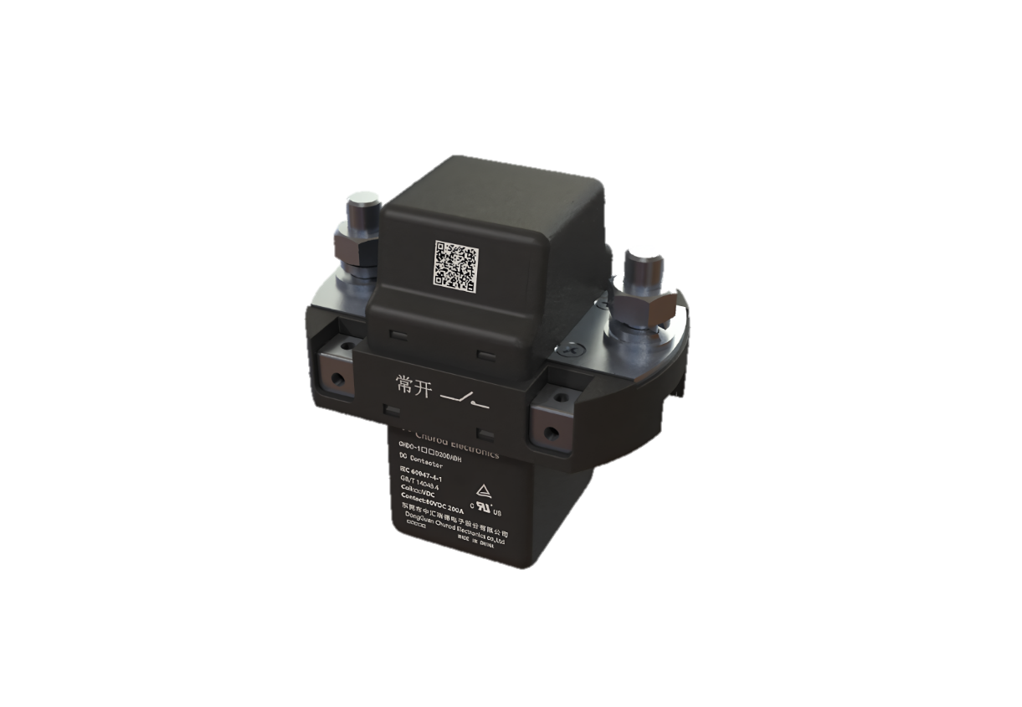

CHDC-200ADH
1 Normally Open with double-break contacts, high DC load capacity
Low temperature rise; long service life against high capacitive load surge
Excellent resistance to overcurrent and short-circuit
Dimensions: (85×56×84) mm
Certification：
Application：
Industrial Vehicles, Inverters
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24、48 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | Bolts, Internal Thread |
Mounting Type: | Screw Mount | Package Type: | Dust-proof | Terminal Structure Type: | Quick-connect | Coil Power: | 8.64W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 80VDC |
Rated Load Current: | 200A | Dielectric Withstand Voltage (Between Coil and Contacts): | 1500VAC 1min | Operate Time (ms): | ≤40 | Release Time (ms): | ≤40 | Operating Ambient Temperature: | -40℃~70℃ |
| Mechanical Life (cycles): | 100000 | Electrical Life (cycles): | 6000(See datasheet for more details） | Weight (g): | ≈430 | Volume (mm³): | 85×56×84 | Applications: | Industrial Vehicles, Inverters |
