Low‑Voltage DC Relay

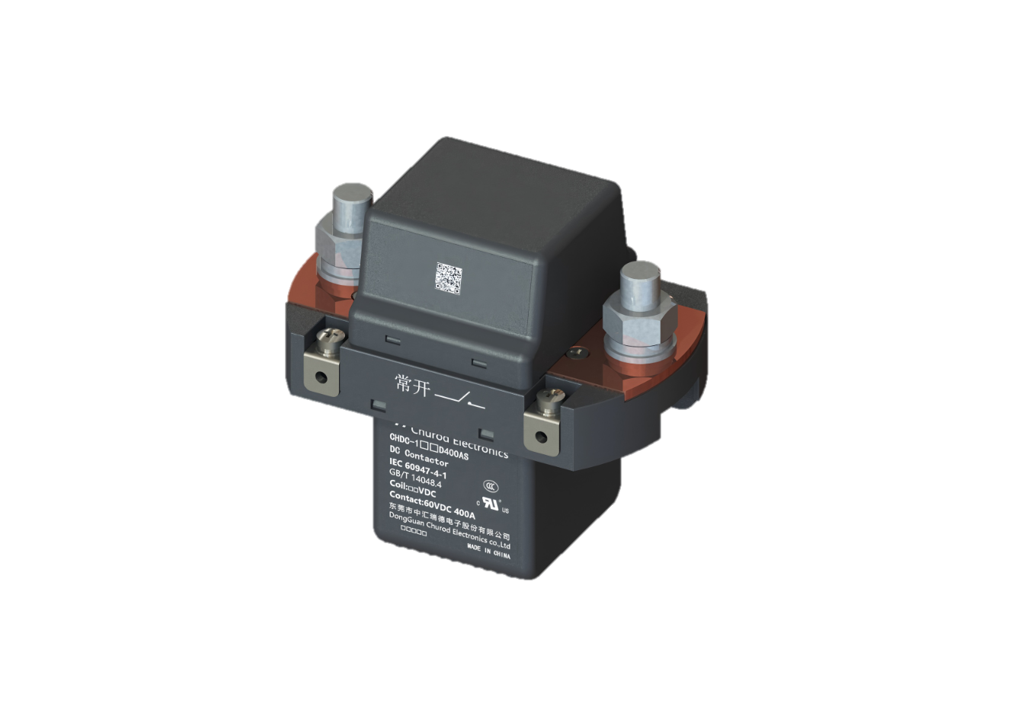

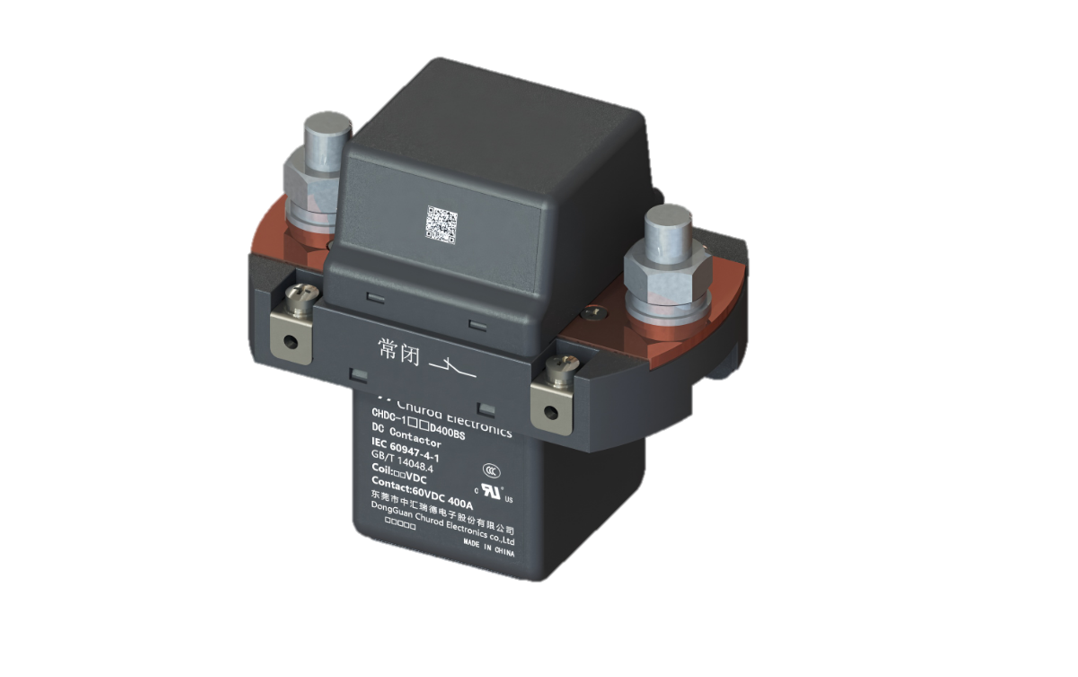

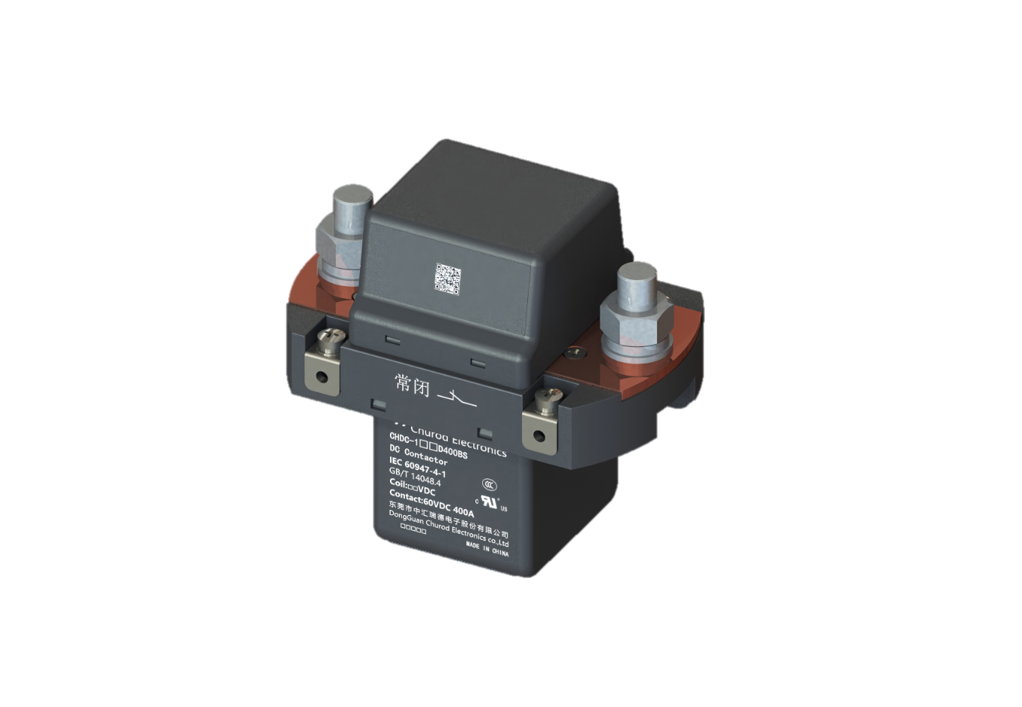

CHDC-400AS&400BS
Double-break contacts with high DC load capacity
Normally Open or Normally Closed contact forms optional
Superior resistance to overcurrent and short-circuit
Dimensions: (104×65×95.4) mm
Certification：
Application：
Communication Power Supplies, DC Test Power Supplies, Industrial Equipment Control, etc.
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24、48、60 | Contact Form: | 1 Form A, 1 Form B | Contact Number: | Single Contact | Terminal Type: | Bolts |
Mounting Type: | Screw Mount | Package Type: | Dust-proof | Terminal Structure Type: | Bolt Terminals | Coil Power: | Pick-up: 217.4W, Hold: 5W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 60VDC、80VDC |
Rated Load Current: | 400A | Dielectric Withstand Voltage (Between Coil and Contacts): | 1500VAC 1min | Operate Time (ms): | ≤30 | Release Time (ms): | ≤30 | Operating Ambient Temperature: | -40℃~70℃ |
| Mechanical Life (cycles): | 100000 | Electrical Life (cycles) | 6000(See datasheet for more details） | Weight (g): | ≈650 | Volume (mm³): | 104×65×95.4 | Application | Communication Power Supplies, DC Test Power Supplies, Industrial Equipment Control, etc. |
