Low‑Power Relay

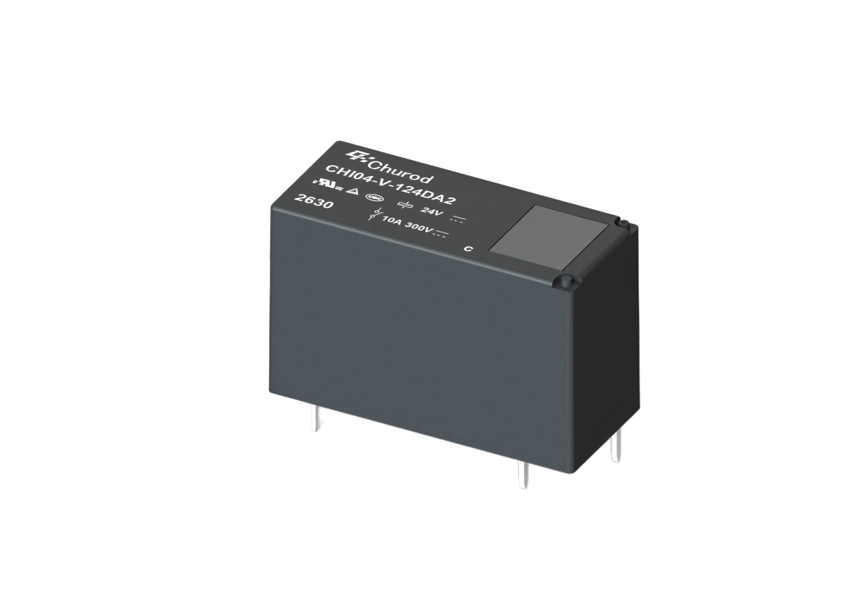

CHI04
1 Normally Open
10A 300VDC high voltage switching capacity
High dielectric withstand voltage of 5,000VAC between coil and contacts
Outline dimension: (29.3×12.7×19) mm
Certification：
Application：
AC & DC power supply control, industrial control
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | — | Package Type: | flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.4W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 300VAC/180VDC/300VDC/420VDC |
Rated Load Current: | 16A | Dielectric Withstand Voltage (Between Coil and Contacts): | 5000VAC 1min | Operate Time (ms): | ≤15 | Release Time (ms): | ≤5 | Operating Ambient Temperature： | -40℃~105℃ |
| Mechanical Life (cycles)： | 3000000 | Electrical Life (cycles)： | 30000(Rated Load） | Weight (g): | ≈15 | Volume (mm³): | 29.3×12.7×19 | Applications： | AC & DC power supply control, industrial control and other fields. |
