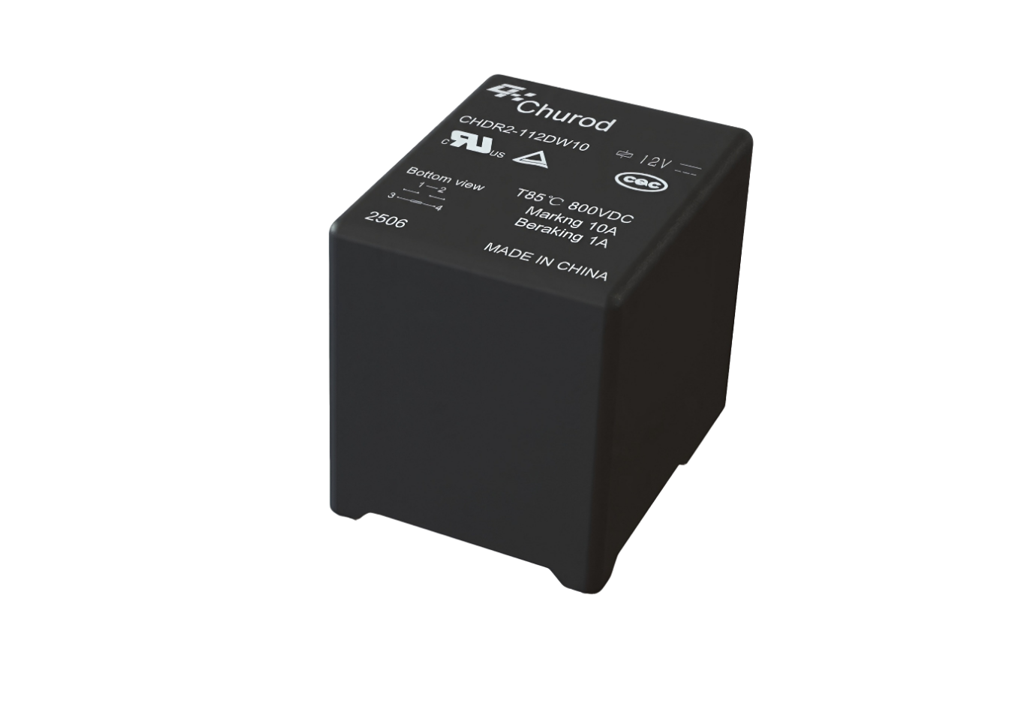

High‑Power Relay
CHDR2
1 NO double contact, compact size with high voltage DC load capability
Long-term current carrying capacity: 20A at 85℃
Large contact gap ＞3.0mm
Dimensions: (38×29.8×33.6) mm
Certification：
Application：
New energy vehicles, inverter pre-charge circuit control, industrial DC control devices, AGV carts
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Double Contact | Terminal Type: | PCB Mount |
Mounting Type: | PCB Soldering | Package Type: | Flux Resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 2W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 800VDC、400VDC |
Rated Load Current: | 10A、20A | Dielectric Withstand Voltage (Between Coil and Contacts): | 3000VAC 1min | Operate Time (ms): | ≤25 | Release Time (ms): | ≤10 | 工Operating Ambient Temperature： | -40℃~85℃ |
| Mechanical Life (cycles)： | 200000 | Electrical Life (cycles)： | 50000(See datasheet for more details） | Weight (g): | ≈65 | Volume (mm³): | 38×29.8×33.6 | Applications： | New energy vehicles, inverter pre-charge circuit control, industrial DC control devices, AGV carts and other fields. |
