High‑Voltage DC Relay

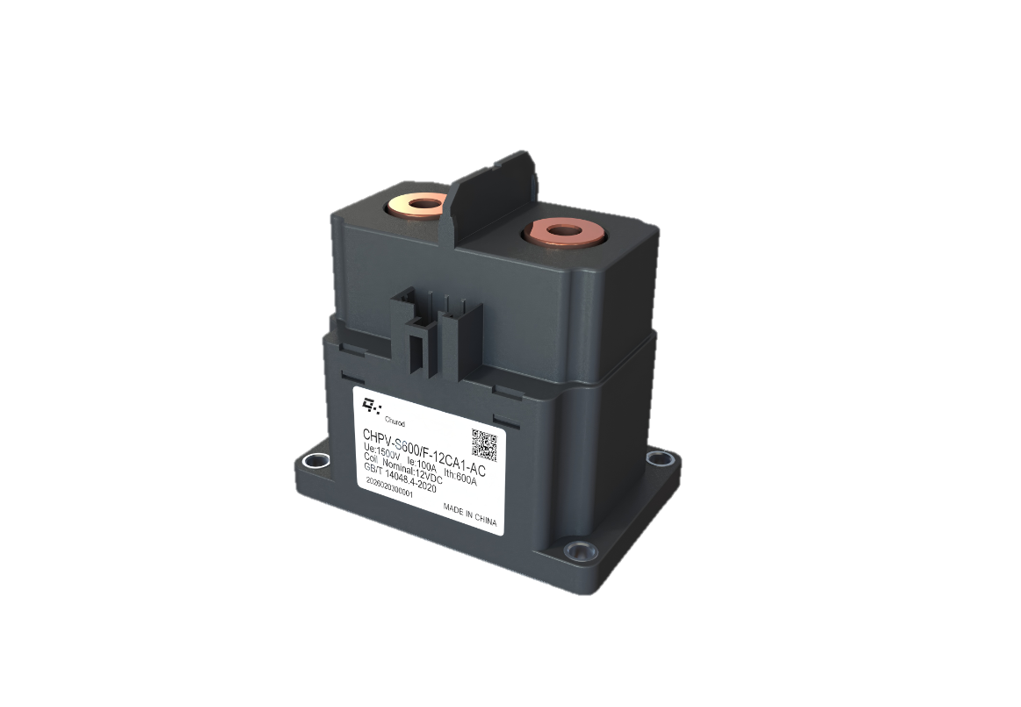

CHPV-S600
Ceramic brazed seal, no risk of arc leakage to prevent fire and explosion.
Filled with hydrogen-based gas, it effectively inhibits contact oxidation and reduces arc erosion. It features low and stable contact resistance, and the contact part achieves IP67 protection rating.
Rated operating voltage: 1000VDC / 1500VDC
2000A breaking capacity under abnormal operating conditions
No polarity restriction for load
Dimensions: (104×70×89.4) mm
Certification：
Application：
Energy Storage, EV Chargers
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1NO + 1NO auxiliary contact | Contact Number: | Single Contact | Terminal Type: | Internal Thread |
Mounting Type: | Vertical Screw Mount | Package Type: | Ceramic Brazed Seal | Terminal Structure Type: | Internal Thread & Standard Connector Mating Terminals | Coil Power: | Pick-up: 55W, Hold: 6W | Coil Characteristic: | Monostable |
Contact Material: | Copper | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 1000VDC、1500VDC |
Rated Load Current: | 600A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤50 | Release Time (ms): | ≤15 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 500000 | Electrical Life (cycles): | 1000(See datasheet for more details） | Weight (g): | ≈900 | Volume (mm³): | 104×70×89.4 | Applications: | Energy Storage, EV Chargers |
