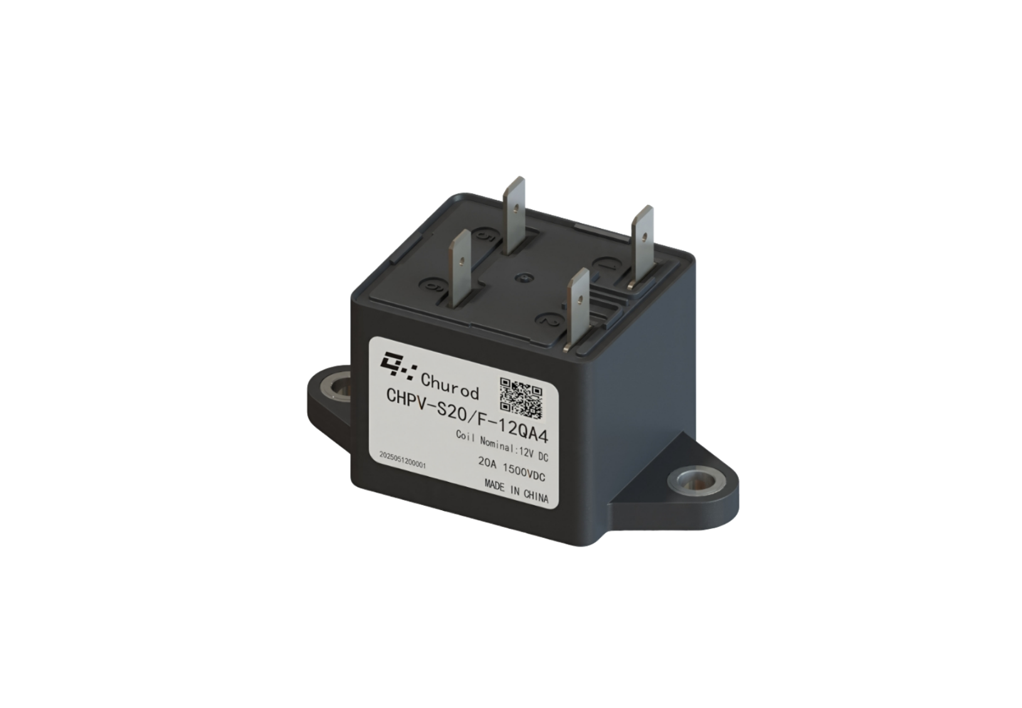

High‑Voltage DC Relay
CHPV-S20
Ceramic brazed seal, no risk of arc leakage to ensure no fire or explosion.
Filled with hydrogen-based gas, effectively preventing contact oxidation and reducing arc erosion. Low and stable contact resistance. The contact part meets IP67 protection rating.
Rated operating voltage: 1000VDC / 1500VDC
Non-polarized load
Dimensions: (78×39.8×46.1) mm
Certification：
Application：
Energy Storage, Construction Machinery, Industrial Power Supplies, etc.
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 NO | Contact Number: | Single Contact | Terminal Type: | Quick-connect |
Mounting Type: | Vertical Screw Mount | Package Type: | Ceramic Brazed Seal | Terminal Structure Type: | #250 Quick-connect Terminal | Coil Power: | 2.6W | Coil Characteristic: | Monostable |
Contact Material: | Copper | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 1000VDC、1500VDC |
Rated Load Current: | 20A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤15 | Release Time (ms): | ≤5 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 200000 | Electrical Life (cycles): | 10000(See datasheet for more details） | Weight (g): | ≈140 | Volume (mm³): | 78×39.8×46.1 | Applications: | Energy Storage, Construction Machinery, Industrial Power Supplies, etc. |
