Safety Relay

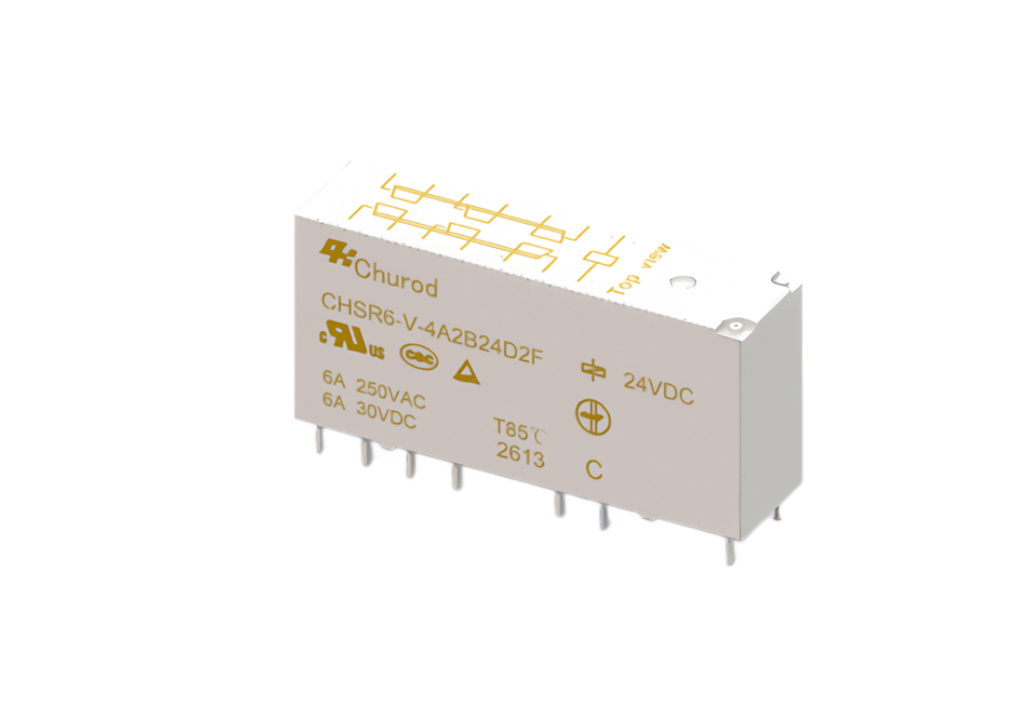

CHSR6
4 NO + 2 NC contact configuration
High safety, forcibly guided contact structure
Compliant with IEC61810-3 (EN50205) standard
4,000VAC dielectric strength between coil and contacts
Dimensions: (50×13×24) mm
Certification：
Application：
Elevator, lift and escalator control, rail transit, safety door control, etc.
Main Parameters
Coil Voltage Type： | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 4 NO + 2 NC | Contacts Number: | 6 contacts | Terminal Type: | PCB Mount |
Mounting Type: | - | Package Type: | Plastic sealed & flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.5W | Coil Characteristic: | Monostable |
Contact Material | Silver Alloy | Insulation Class | F | Coil Parallel Component: | - | Packaging Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 250VAC/30VDC |
Rated Load Current: | 6A | Dielectric Strength (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤20 | Release Time (ms): | ≤20 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 10000000 | Electrical Life (cycles): | 100000(See datasheet for more detail） | Weight (g): | ≈20 | Volume (mm³): | 50×13×24 | Applications: | Applications: Elevator, lift and escalator control, rail transit, safety door control, etc. |
