Safety Relay

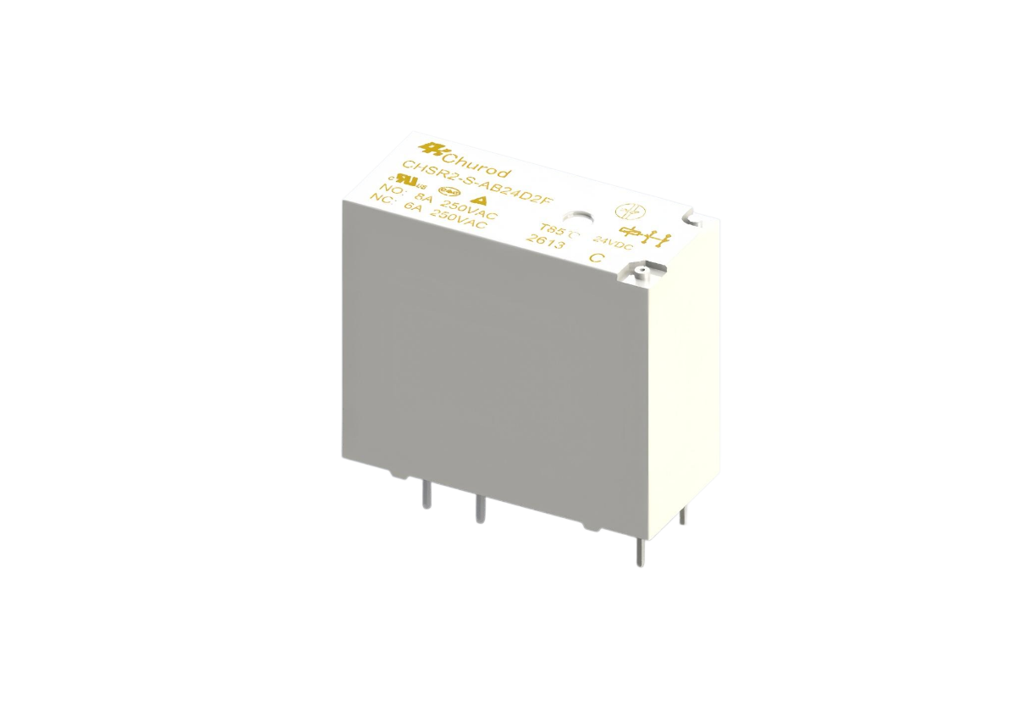

CHSR2
1NO + 1NC contact combination
High safety, forcibly guided contact structure
Compliant with IEC61810-3 (EN50205) standard
Dielectric strength of 4,000VAC between coil and contacts
Dimensions: (28.8×12.6×25.4) mm
Certification：
Application：
Elevator, lift and escalator control, rail transit, safety door control, etc.
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1 Form A, 1 Form B | Contact Number: | 2 Contacts | Terminal Type: | PCB Mount |
Mounting Type: | - | Package Type: | Plastic sealed & flux resistant | Terminal Structure Type: | PCB Mount | Coil Power: | 0.7W | Coil Characteristic: | Monostable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack, Tape & Reel | Rated Load Voltage: | 250VAC/30VDC |
Rated Load Current: | 8A、6A | Dielectric Withstand Voltage (Between Coil and Contacts): | 4000VAC 1min | Operate Time (ms): | ≤15 | Release Time (ms): | ≤10 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 10000000 | Electrical Life (cycles): | 100000(See datasheet for more details） | Weight (g): | ≈18 | Volume (mm³): | 28.8×12.6×25.4 | Applications: | Elevator, lift and escalator control, rail transit, safety door control, etc. |
