Industrial Latching Relay

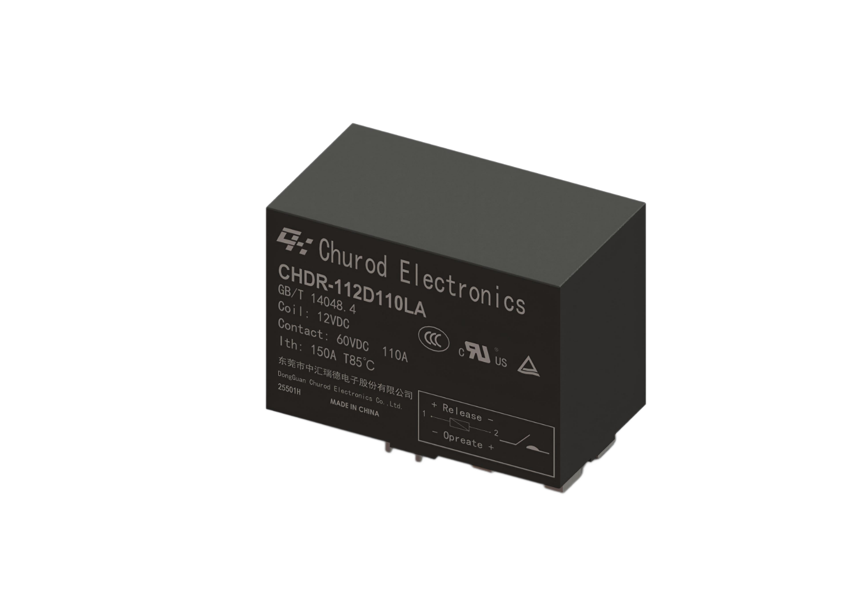

CHDR-110
Small PCB Mount Latching Contactor with High Load Capacity
Dual-contact magnetic blow-out arc quenching structure, non-polarized load
Low contact voltage drop, high short-circuit current withstand capability
Main contact type: Bistable latching. Main and auxiliary contacts act synchronously, open and close simultaneously
Dimensions: (39.2×22×28.2) mm
Certification：
Application：
EV Charger Power Modules, EV Charger PDU, Other DC Load Applications
Main Parameters
Coil Voltage Type: | DC | Coil Operating Voltage (V): | 12、24 | Contact Form: | 1NO + 1NO auxiliary contact, 1NC + 1NC auxiliary contact | Contact Number: | Single Contact | Terminal Type: | PCB Mount |
Mounting Type: | - | Package Type: | Flux-resistant & Waterproof | Terminal Structure Type: | PCB Mount | Coil Power: | 7.7W | Coil Characteristic: | Bistable |
Contact Material: | Silver Alloy | Insulation Class: | F | Coil Parallel Component: | - | Packing Type: | Blister pack | Rated Load Voltage: | 60VDC |
Rated Load Current: | 110A、150A | Dielectric Withstand Voltage (Between Coil and Contacts): | 3000VAC 1min | Operate Time (ms): | ≤30 | Release Time (ms): | ≤30 | Operating Ambient Temperature: | -40℃~85℃ |
| Mechanical Life (cycles): | 100000 | Electrical Life (cycles): | 6000(See datasheet for more details） | Weight (g): | ≈50.9 | Volume (mm³): | 39.2×22×28.2 | Applications: | EV Charger Power Modules, EV Charger PDU, Other DC Load Applications |
